| Application | Air |
| Body Material | Composite |
| Color | Black |
| Compatible Tube Material | Copper, Nylon, Polyethylene, Polyurethane |
| Fitting Material | Nylon |
| Fitting Side B Connection Type | Universal |
| Fittings Sub-category | Elbows |
| System Of Measurement | Imperial |
| Fitting Side A Connection Type | Push-to-Connect |
| Fitting Side A Tube Outer Diameter | 1/2" |
| Fitting Side B Pipe Size | 1/4" |
| Fitting Thread Size | 1/4"-18 |
| Includes Pre-applied Thread Sealant | Yes |
| Maximum Operating Pressure | 250 psi |
| Maximum Operating Temperature | 160°F |
| Minimum Operating Temperature | 0°F |
| Release Ring Material | NBR70 |

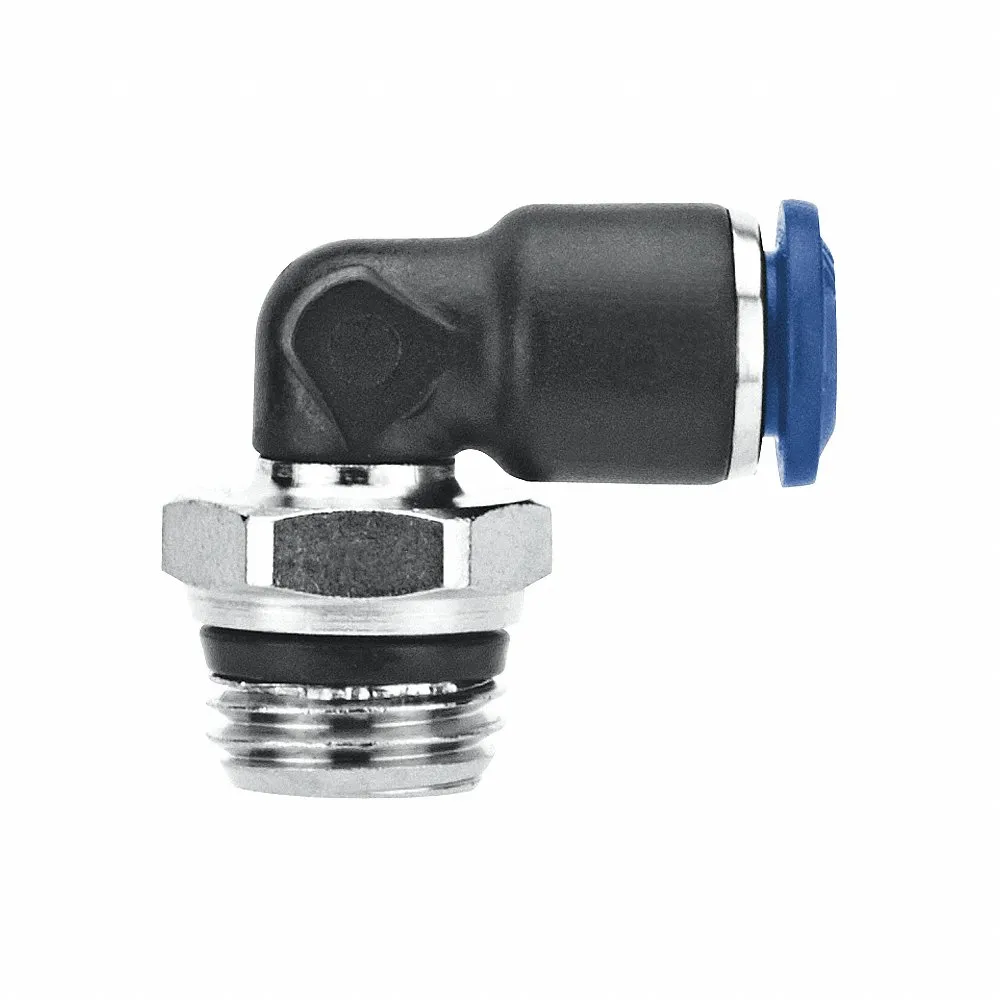

| Specific Fitting Shape | 90° Elbow Adapter |
| Standards | ISO 14743:2004, PED 2014/68/UE, REACH 1907/2006, ROHS 2011/65/CE, SILICONE FREE CERTIFIED |
| Thread Sealant Type | NBR70 |
