| Application | Air, Non-Potable Water |
| Color | Silver |
| Compatible Copper Tube Size | 1/4" |
| Compatible Tube Material | Copper, Nylon, Polyethylene, Polyurethane |
| Fitting Material | Nylon |
| Fitting Side A Connection Type | Push-to-Connect |
| Fitting Side A Tube Outer Diameter | 1/4" |
| Fitting Side B Connection Type | Universal |
| Fitting Side B Pipe Size | 1/2" |
| Fitting Thread Size | 1/2" |
| Includes Pre-applied Thread Sealant | Yes |
| Maximum Operating Pressure | 250 psi |
| Maximum Operating Temperature | 160°F |
| Minimum Operating Temperature | 0°F |
| Overall Length | 1 21/32" |
| Release Ring Material | Composite |
| Release Type | Collet |
| Resistance Properties | Impact Resistant, Vibration Resistant |

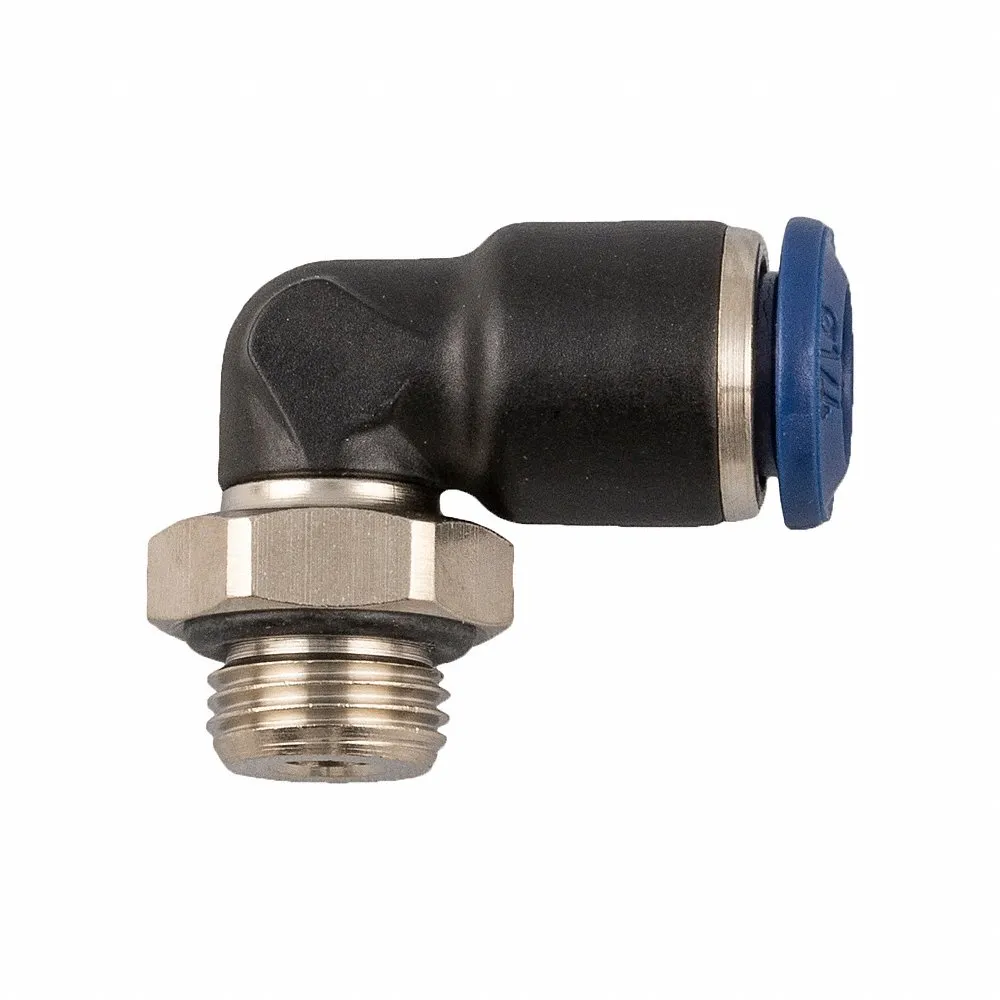

| Specific Fitting Shape | 90° Swivel Elbow Adapter |
| Standards | 1907/2006 REACH, 2011/65/CE ROHS, ISO 14743:2004, PED 2014/68/UE |
| System Of Measurement | Imperial |
| Thread Sealant Type | NBR70 |
