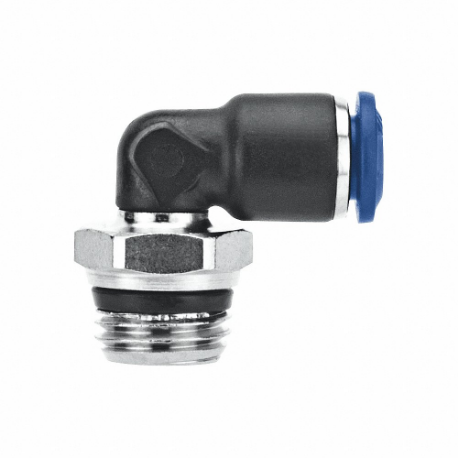

| Item | Connector |
| Application | Air, Vacuum |
| Body Material | Composite |
| Color | Black |
| Fitting Side A Connection Type | Push To Connect |
| Fitting Side A Tube Outer Diameter | 0.188" |
| Fitting Side B Connection Type | Universal |
| Fitting Side B Pipe Size | 1/8" |
| Fittings Sub-category | Elbows |
| Material | Composite |
| Max. Operating Pressure | 250 psi |
| Max. Operating Temp. | 160°F |
| Min. Operating Temp. | 0°F |
| Release Ring Material | Acrylonitrile Butadiene Copolymer |
| Specific Fitting Angle | 90° |
| Specific Fitting Shape | Elbow Adapter |
| Sub-brand | Swift Fit |
| System Of Measurement | Imperial |
| Thread Sealant Type | NBR 70 |
| Thread Size | 1/8"-27 |
| Fitting Material | Composite |
| Fitting Thread Size | 1/8"-27 |
| Includes Pre-applied Thread Sealant | Yes |
| Maximum Operating Pressure | 250 psi |
| Maximum Operating Temperature | 160°F |
| Minimum Operating Temperature | 0°F |
| Standards | EN 331, REACH, ROHS |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| Model | Item | Price | |
|---|---|---|---|
| 55110-6-M5 | Fitting | €7.99 | |
| 55110-4-M5 | Fitting | €7.94 | |
| 55360-10-6-1/4 | Fitting | €14.28 | |
| 55360-8-4-1/4 | Fitting | €12.95 | |
| 55360-6-4-1/4 | Fitting | €12.87 | |
| 55360-8-6-1/8 | Fitting | €12.73 | |
| 55360-8-4-1/8 | Fitting | €12.52 |
