| Application | Air |
| Color | Silver |
| Compatible Tube Material | Copper, Nylon, Polyethylene, Polyurethane |
| Fitting Material | Stainless Steel |
| Fitting Side A Connection Type | Push-to-Connect |
| Fitting Side A Tube Outer Diameter | 10 mm |
| Fitting Side B Connection Type | Push-to-Connect |
| Fitting Side B Tube Outer Diameter | 10 mm |
| Includes Pre-applied Thread Sealant | Yes |
| Material Grade | 316L |
| Maximum Operating Pressure | 290 psi |
| Maximum Operating Temperature | 437°F |
| Minimum Operating Temperature | 5°F |
| Release Ring Material | PTFE, FKM |

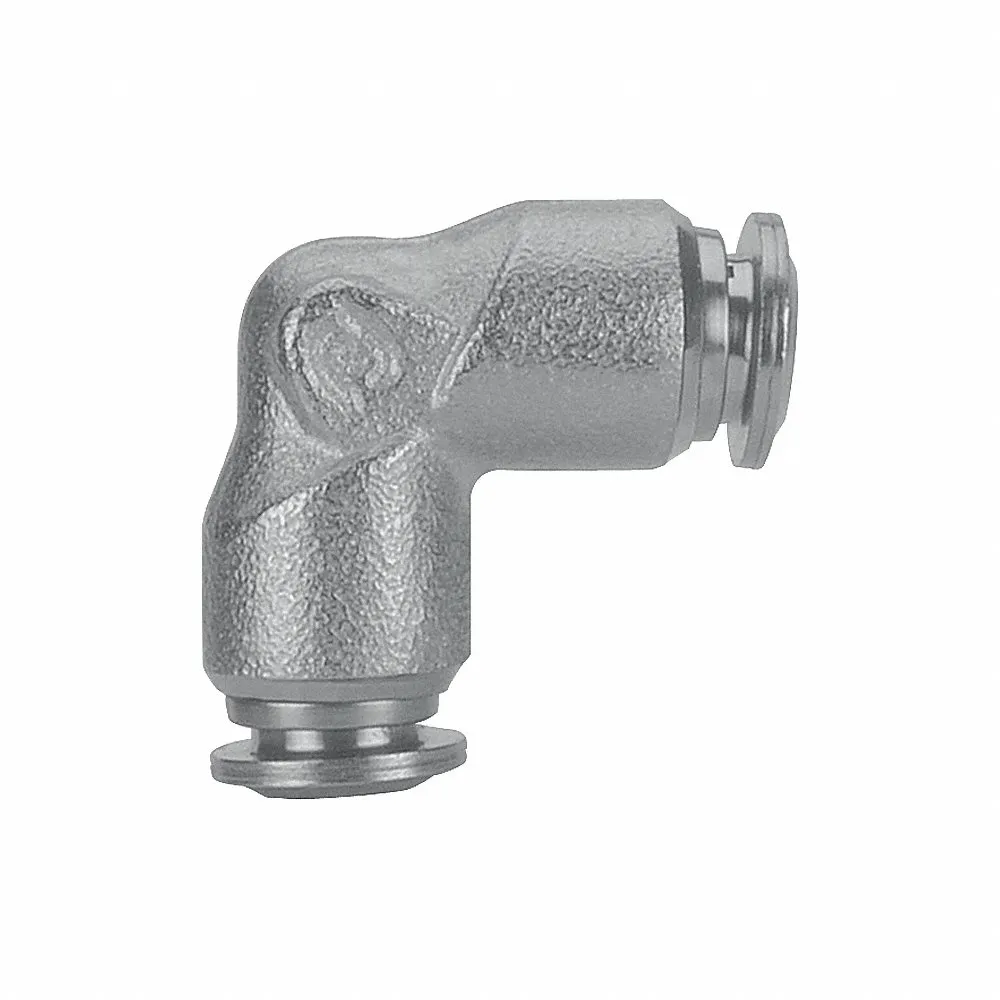

| Specific Fitting Shape | 90° Elbow |
| Standards | ISO 14743:2004, NSF/ANSI 169, PED 2014/68/UE, REACH 1907/2006, ROHS 2011/65/CE, SILICONE FREE CERTIFIED |
| System Of Measurement | Metric |
| Thread Sealant Type | FKM |
