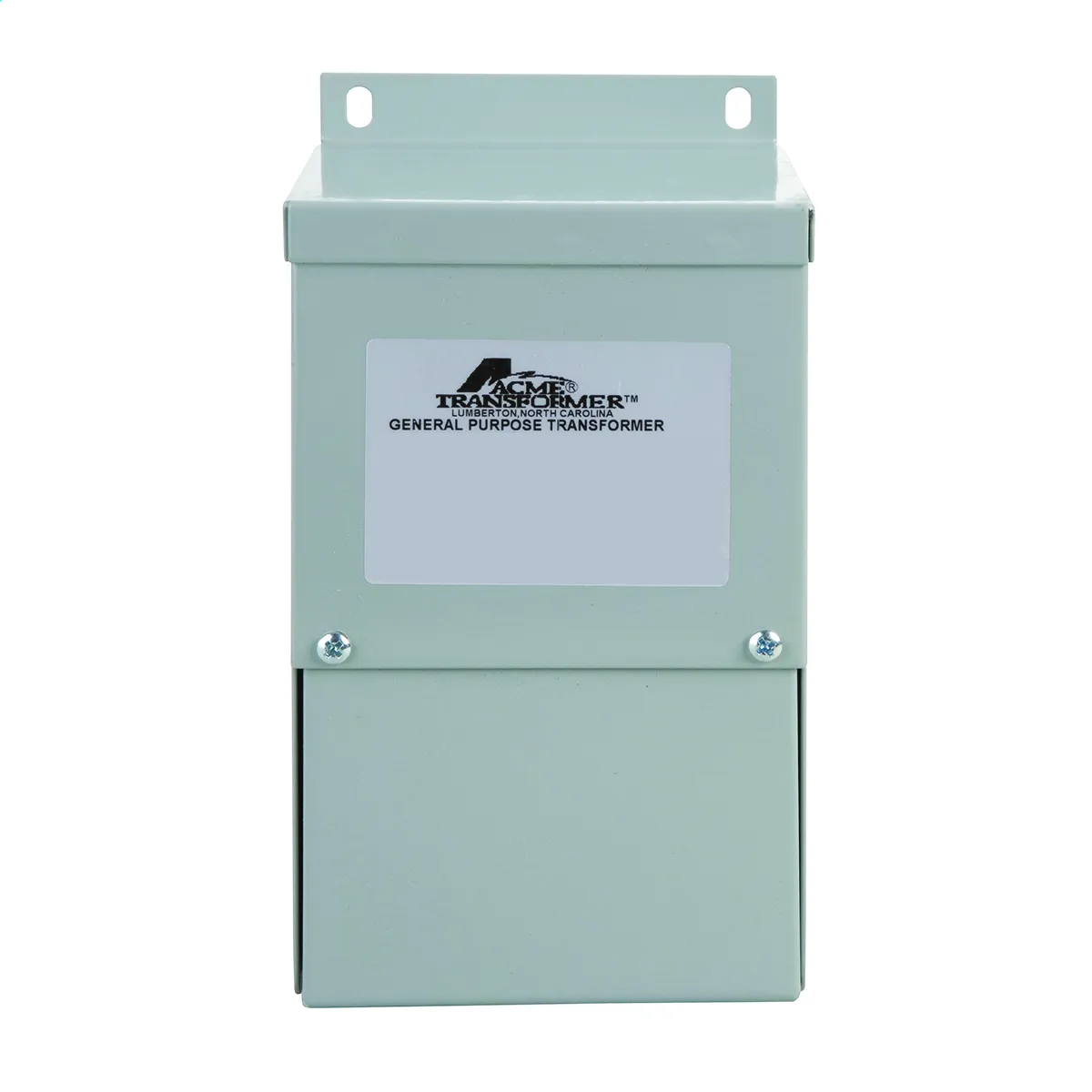

ACME ELECTRIC T181054 Buck Boost Transformer, Single Phase, 50VA
Get it by Monday, Jun 16
€187.48 /unit
Add To Cart
Request a Quote
Payment
Get it by Monday, Jun 16
Payment
| Item | Buck Boost Transformer |
| Color | Gray |
| Depth | 3.05" |
| Enclosure Finish | Gray |
| Enclosure Rating | NEMA 3R |
| Enclosure Type | Indoor/Outdoor |
| Height | 6.41" |
| Indoor/outdoor | Indoor/Outdoor |
| Input Voltage | 120/240V AC |
| Kva Rating | 50 VA |
| Mounting Type | Wall |
| Output Voltage | 16/32V AC |
| Phase | 1 |
| Temp. Rise | 80°C |
| Va Rating | 50 VA |
| Width | 3.14" |
| Winding Material | Copper |
| Frequency | 50/60 Hz |
| Includes Knockouts | Knockouts Included |
| Insulation Temperature Rating | 356°F |
| Ip Rating | IP54 |
| Knockout Size | 1/2" |
| Manufacturers Warranty Length | 10 yrs. |
| Mounting Location | Wall |
| Nema Enclosure Rating | 3R |
| Overall Depth | 3.05" |
| Overall Height | 6.41" |
| Overall Width | 3.14" |
| Power Rating | 50 VA |
| Standards | CSA CERTIFIED C22.2 NO. 47, UL 506 |
| Temperature Rise | 239°F |
| Ship weight (kg) | 1.8 |
| Ship height (cm) | 16.28 |
| Ship length (cm) | 7.75 |
| Ship width (cm) | 7.98 |
| HS code | 8504314065 |
| Country of Origin | MX |
| Product | Model | Depth | Height | Length | Output Voltage | Secondary Voltage | Temp. Rise | Va Rating | Width | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
T181047 | 3.05" | 6.41" | - | 12/24 VAC | - | 80 Degrees C | 50VA | 3.14" | €149.91 | |
|
T181048 | 3.67" | 7.16" | - | 12/24 VAC | - | 80 Degrees C | 100VA | 3.89" | €174.60 | |
|
T181049 | 3.67" | 7.16" | - | 12/24 VAC | - | 80 Degrees C | 150VA | 3.89" | €186.56 | |
|
T181055 | 3.67" | 7.16" | - | 16/32 VAC | - | 80 Degrees C | 100VA | 3.89" | €196.29 | |
|
T181056 | 3.67" | 7.16" | - | 16/32 VAC | - | 80 Degrees C | 150VA | 3.89" | €218.57 | |
 |
T113076 | - | 11.5" | 7.13" | - | 16/32V | - | - | 10.31" | €983.35 | |
 |
T213078 | - | 20.81" | 10.84" | - | 16/32V | - | - | 11.12" | €1,990.80 |
