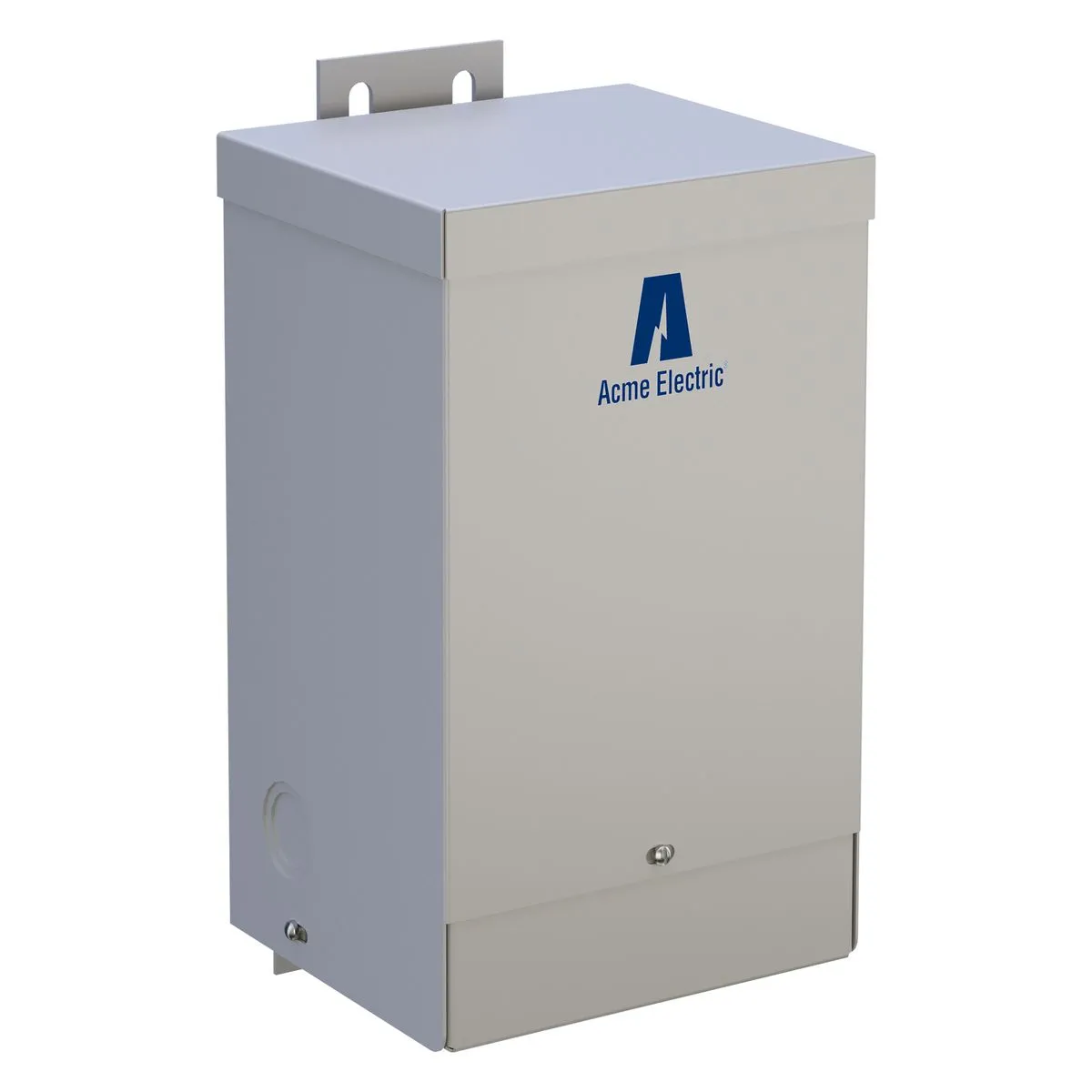

ACME ELECTRIC T137921 Buck Boost Transformer, Single Phase, 1.5kVA
Get it by Monday, Jun 16
€516.62 /unit
Add To Cart
Request a Quote
Payment
Get it by Monday, Jun 16
Payment
| Item | Buck Boost Transformer |
| Carton Quantity | 1 |
| Color | Gray |
| Construction | Encapsulated |
| Depth | 5.13" |
| Dimensions | 3.67" x 3.89" x 7.16" |
| Enclosure Rating | NEMA 3R |
| Enclosure Type | Encapsulated |
| Features | Easily Configured For Numerous Applications |
| Frequency | 60 Hz |
| Height | 7 4/25" |
| Input Voltage | 240/480V |
| Kva Rating | 1.5 kVA |
| Length | 3.67" |
| Max. Temp. | 115°C |
| Mounting Type | Wall |
| Nema Rating | NEMA 3R |
| Outdoor Rated - Transformer | Yes |
| Output Voltage | 24/48V |
| Primary Voltage | 240/480V |
| Secondary Voltage | 24/48V |
| Va Rating - Transformer | 1.5 kVA |
| Width | 3.89" |
| Winding Material | Copper |
| Winding Material - Transformer | Copper |
| Enclosure Finish | Powder Coated |
| Includes Knockouts | Knockouts Included |
| Insulation Temperature Rating | 356°F |
| Ip Rating | IP54 |
| Knockout Size | 1/2", 3/4" |
| Manufacturers Warranty Length | 10 yrs. |
| Mounting Location | Wall |
| Nema Enclosure Rating | 3R |
| Overall Depth | 3.67" |
| Overall Height | 7.16" |
| Overall Width | 3.89" |
| Phase | Single |
| Power Rating | 1.5 kVA |
| Standards | CSA CERTIFIED C22.2 NO. 47, UL 506 |
| Temperature Rise | 239°F |
| Ship weight (kg) | 13.5 |
| Ship height (cm) | 18.19 |
| Ship length (cm) | 9.32 |
| Ship width (cm) | 9.88 |
| Country of Origin | MX |
