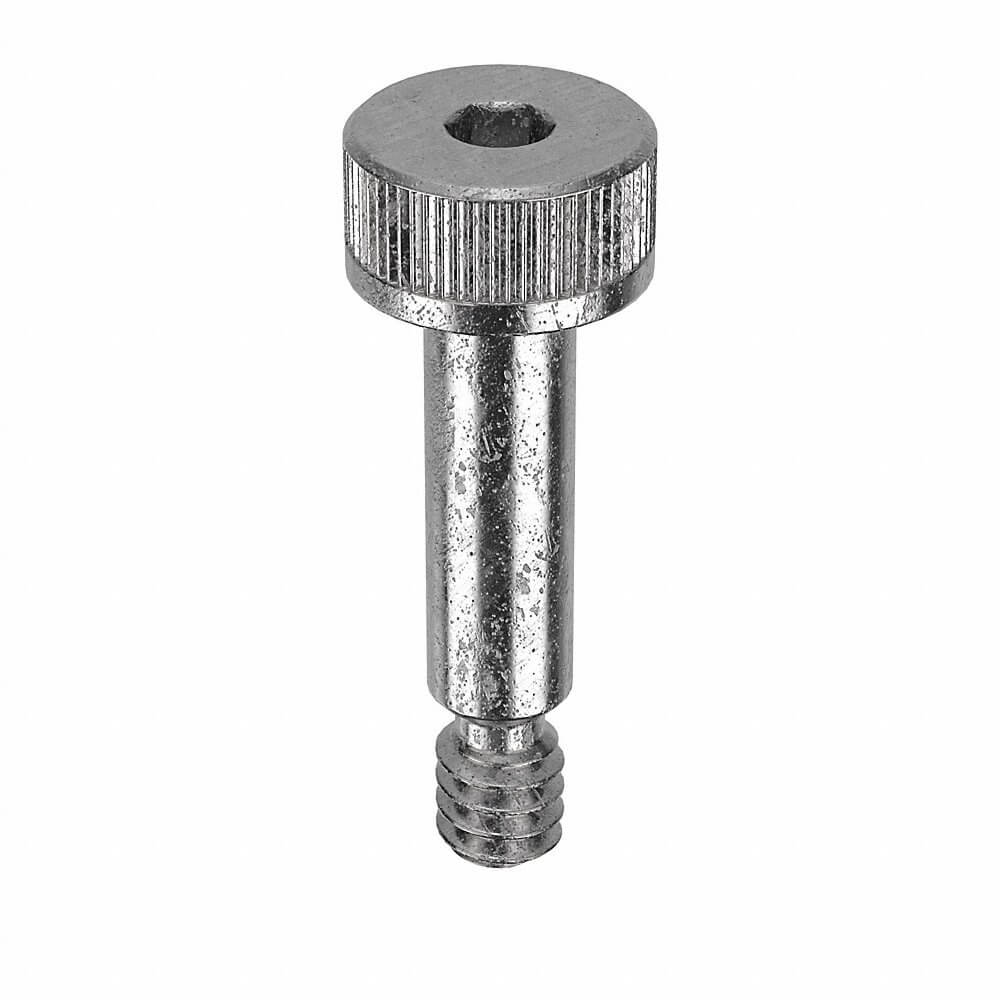

| Item | Shoulder Screw |
| Drive Size | 5/64" |
| Drive Type | Hex Socket |
| Grade | Grade 18-8 |
| Hardness | Rockwell B55 |
| Head Dia. | 1/4" |
| Head Height | 1/8" |
| Head Type | Standard |
| Material | Stainless Steel |
| Min. Tensile Strength | 70000 psi |
| Shoulder Dia. | 1/8" |
| Shoulder Length | 13/32" |
| Shoulder Length Tolerance | -0.005" to +0.005" |
| System Of Measurement | Imperial |
| Thread Length | 5/32" |
| Thread Size | #4-40 |
| Type | Standard |
| Dimensional Standards | AMPG 2012 ZS.01 |
| Display Qty | 1 |
| Finish | Plain |
| Head Diameter | 1/4" |
| Head Texture | Knurled |
| Material Grade/class | 18-8 |
| Precision Screw | No |
| Rockwell Hardness | B55 |
| Shear Strength | Not Rated |
| Shoulder Diameter | 1/8" |
| Shoulder Diameter Tolerance | 0.002" to 0.004" |
| Tensile Strength | 70000 psi |
| Thread Fit | 3A |
| Ship weight (kg) | 0.05 |
| Ship height (cm) | 0.51 |
| Ship length (cm) | 1.78 |
| Ship width (cm) | 0.51 |
| HS code | 7318156010 |
| Country of Origin | US |
