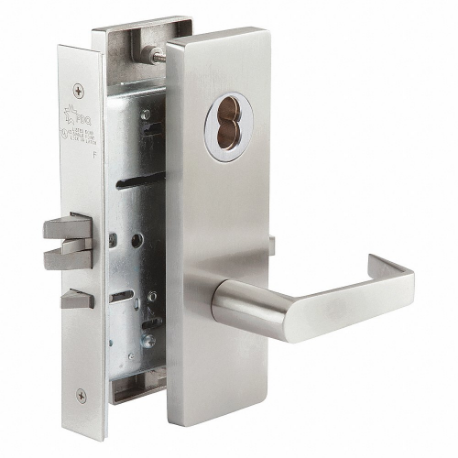

| Item | Mortise Lockset |
| Ada Compliant | Yes |
| Backset | 2 3/4" |
| Electrical/mechanical | Mechanical |
| Features | Limited Lifetime Warranty, Precision-Engineered Curve, Reversible Anti-Friction Latch Rotates 180°, Solid One-Piece Stainless Steel, Staked Assembly Design |
| Finish | Satin Stainless Steel |
| For Use With | Hollow Metal And Wood Doors |
| Function | Privacy |
| Handle Type | Lever |
| Includes | Hardware |
| Key Type | Not Keyed |
| Keyway Type | None |
| Length | 4 7/8" |
| Ligature Resistant | No |
| Location Type | Healthcare, Institutional, School |
| Mortise / Cylindrical | Mortise |
| Number Of Keys | 0 |
| Required Door Thickness | 1 3/4" |
| Strike Type | Curved Lip Strike |
| Style | MR176 Escutcheon |
| Visual Indicator Message | No Message |
| Width | 1 1/4" |
| Ansi Grade | Grade 1 |
| Ansi Lockset Function | Privacy |
| Cylinder Core Type | Interchangeable Core Cylinder |
| Door Thickness - Maximum | 1 3/4" |
| Door Thickness - Minimum | 1 3/4" |
| Fire Rating | 3 hrs. |
| General Lockset Function | Privacy Lever Locksets |
| Hand Orientation | Non Handed |
| Includes Core | Core Not Included |
| Inside Locking Access | Thumb Turn |
| Knob/handle Material | Stainless Steel |
| Ligature Resistance | Not Ligature Resistant |
| Lock Assembly Type | Mortise |
| Lockset Function Ansi Code | F22 |
| Lockset Handle Type | Lever |
| Lockset Style | MR176 Philadelphia |
| Lockset Type | Mechanical |
| Outside Locking Access | Coin Turn |
| Performance Duty Rating | 1 |
| Properties | Corrosion Resistant |
| Standards | ANSI/BHMA |
| Strike Plate Height | 4 1/8" |
| Strike Plate Width | 1 1/4" |
| Trim Plate Shape | Rectangular |
| Ul Fire Rating | UL10C |
| Ship weight (kg) | 3.29 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| Product | Model | Item | Price | |
|---|---|---|---|---|
 |
5340-00-NIB-0252 | Lever Lockset | €365.52 | |
 |
5340-00-NIB-0253 | Lever Lockset | €369.18 | |
|
5340-00-NIB-0251 | Lever Lockset | €369.18 | |
 |
5340-00-NIB-0240 | Lever Lockset | €272.03 | |
 |
5340-00-NIB-0242 | Lever Lockset | €426.15 | |
 |
5340-00-NIB-0243 | Lever Lockset | €429.79 | |
 |
5340-00-NIB-0262 | Lever Lockset | €575.16 |
