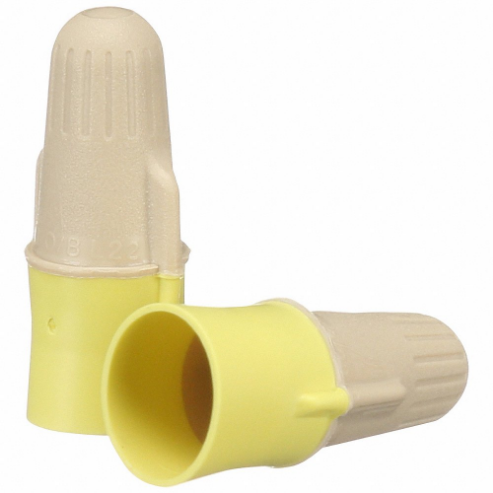

| Item | Twist On Wire Connector |
| Application | Wide Range |
| Color | Tan, Yellow |
| For Conductor Material | Copper |
| Height | 19/25" |
| High Temperature Application | No |
| Length | 1.17" |
| Max. Single Wire Size | 12 AWG |
| Max. Voltage | 600V |
| Max. Wire Combination | 3 |
| Max. Wire Size | 12 AWG |
| Maximum Conductors | 6 |
| Maximum Single Wire Size | 12 AWG |
| Min. Wire Combination | 2 |
| Min. Wire Size | 22 AWG |
| Minimum Single Wire Size | 22 AWG |
| Rohs Compliant | Yes |
| Strip Length | 5/8" |
| Type | Wire |
| Ul 94 Flammability Rating | V-2 |
| Width | 0.49" |
| Wire Connector Style | Wing |
| Wire Type | Solid And Stranded |
| Contact Material | Steel |
| Flammability Rating | V-2 |
| Insulation Material | Plastic |
| Maximum Operating Temperature | 221°F |
| Maximum Voltage | 600V |
| Maximum Wire Combination | (3) 12 AWG |
| Minimum Wire Combination | (2) 22 AWG |
| Overall Height | 1.03" |
| Overall Width | 0.49" |
| Special Features | Dual Color Coded, Flexible Spring Expands for Freater Wire Range and Reuse, Strong Bite for a Secure, Reliable Connection |
| Standards | CSA CERTIFIED, UL LISTED |
| Ship weight (kg) | 0.67 |
| Ship height (cm) | 2.62 |
| Ship length (cm) | 13.97 |
| Ship width (cm) | 1.24 |
| HS code | 8546900000 |
| Country of Origin | US |
| Product | Model | Color | Height | Length | Max. Wire Size | Min. Wire Size | Type | Width | Wire Type | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
7100127165 | Tan/Red | 0.76" | 1.17" | 12 AWG | 18 AWG | Wire | 0.76" | Solid And Stranded | 100 | €41.41 | |
 |
7100127163 | Tan/Yellow | 0.76" | 1.17" | 12 AWG | 22 AWG | Wire | 0.49" | Solid And Stranded | 100 | €28.54 | |
 |
7100127195 | Orange/Blue | 0.76" | 1.17" | 12 AWG | 22 AWG | Wire | 0.49" | Solid And Stranded | 100 | €31.94 | |
 |
7100127164 | Red/Yellow | 0.76" | 1.17" | 8 AWG | 18 AWG | Wire | 0.76" | Solid And Stranded | 100 | €47.74 | |
 |
7100127167 | Blue/Gray | 0.76" | 1.17" | 6 AWG | 14 AWG | Wire | 1.12" | Solid And Stranded | 50 | €68.01 | |
 |
7000133222 | Orange/Blue | 0.76" | 1.17" | 12 AWG | 22 AWG | Wire | 0.49" | Solid And Stranded | 500 | €157.50 | |
 |
7000132941 | Tan/Red | 1.17" | 0.76" | 8 AWG | 22 AWG | Performance Plus | 0.76" | Copper | 25 | €5,278.38 |
