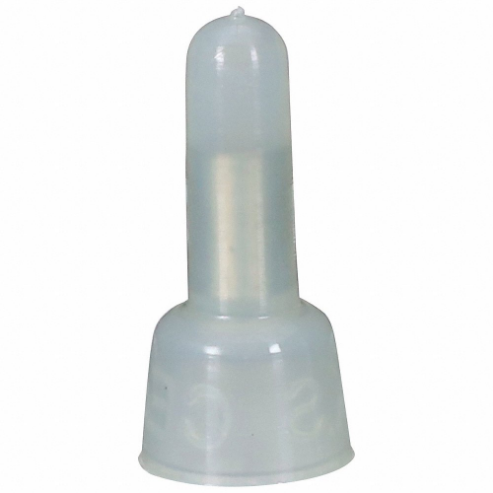

| Item | Closed End Connector |
| Barrel Inside Dia. | 1/4" |
| Color | Natural |
| Color Code | Clear |
| Connection Type | Crimp |
| Insulation Material | Nylon |
| Insulation Type | Nylon |
| Length | 19/25" |
| Max. Temp. | 221°F |
| Max. Voltage | 600V |
| Overall Length | 19/25" |
| Wire Size | 22 AWG to 16 AWG |
| Compatible Installation Tool Model Number | TH-440, TH-450 |
| Contact Material | Copper |
| For Wire Type | Copper Wire |
| Maximum Wire Combination | 16 AWG |
| Maximum Wire Size | 16 AWG |
| Minimum Operating Temperature | -40°F |
| Minimum Wire Combination | (2) 22 AWG |
| Minimum Wire Size | 22 AWG |
| Rohs Compliant | Yes |
| Seam Style | Butted |
| Special Features | Built-in Wire Stop for Correct Positioning, Smooth, Flared End Provides Quick Wire Insertion |
| Standards | CSA CERTIFIED, UL LISTED |
| Strip Length | 1/2" |
| Termination Style | Crimp |
| Ship weight (kg) | 0.14 |
| Ship height (cm) | 7.37 |
| Ship length (cm) | 2.11 |
| Ship width (cm) | 4.32 |
| HS code | 8536904000 |
| Country of Origin | TW |
| Product | Model | Barrel Inside Dia. | Length | Overall Length | Wire Range | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|
 |
7000133426 | 4" | 0.85" | 0.85" | 18 to 10 AWG | 50 | €36.93 |
