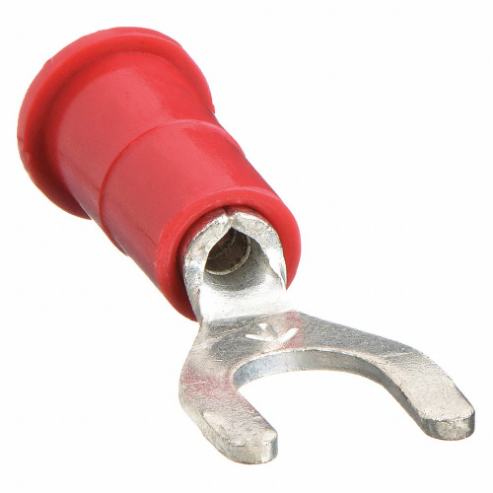

| Item | Fork Terminal |
| Barrel Inside Diameter | 0.07" |
| Clearance | 0.29" |
| Color Code | Red |
| Connection Material | Copper |
| Connection Type | Crimp , Lug |
| Dimension E | 0.74" |
| Insulation Color | Red |
| Insulation Material | Vinyl |
| Insulation Type | Vinyl |
| Max. Insulation Outer Dia. | 0.145" |
| Max. Temp. | 221°F |
| Max. Voltage | 600V |
| Maximum Conductor Size | 18 AWG |
| Maximum Wire Size | 18 AWG |
| Min. Conductor Size | 22 AWG |
| Min. Wire Size | 22 AWG |
| Overall Length | 0.9" |
| Seam | Butted |
| Seam Style | Butted |
| Solution For | Wireless Network Infrastructure Accessories |
| Stud Diameter | 0.164" |
| Stud Size | #8 |
| Terminal Connection | Crimp |
| Terminal Type | Standard |
| Wire Size | 22 AWG to 18 AWG |
| Maximum Operating Temperature | 221°F |
| Maximum Voltage | 600V |
| Minimum Wire Size | 22 AWG |
| Standards | CSA CERTIFIED, UL LISTED |
| Tongue Width | 0.34" |
| Ship weight (kg) | 0.09 |
| Ship height (cm) | 7.11 |
| Ship length (cm) | 2.29 |
| Ship width (cm) | 5.08 |
| HS code | 8536904000 |
| Country of Origin | US |
| Product | Model | Color Code | Overall Length | Stud Size | Wire Range | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|
 |
7010351313 | Red | 0.9" | #6 | 22 to 18 AWG | 100 | €67.58 | |
|
7010398236 | Red | 0.9" | #10 | 22 to 18 AWG | 100 | €75.58 | |
 |
7010351314 | Blue | 0.9" | #6 | 16 to 14 AWG | 100 | €63.88 | |
 |
7010320792 | Yellow | 1.03" | #8 | 12 to 10 AWG | 50 | €51.48 | |
 |
7100163943 | Red | 0.9" | #10 | 22 to 18 AWG | 1 | €528.39 | |
 |
7010351290 | Yellow | 1.03" | #6 | 12 to 10 AWG | 50 | €51.48 | |
 |
7010398205 | Blue | 0.88" | #10 | 16 to 14 AWG | 100 | €67.70 |
