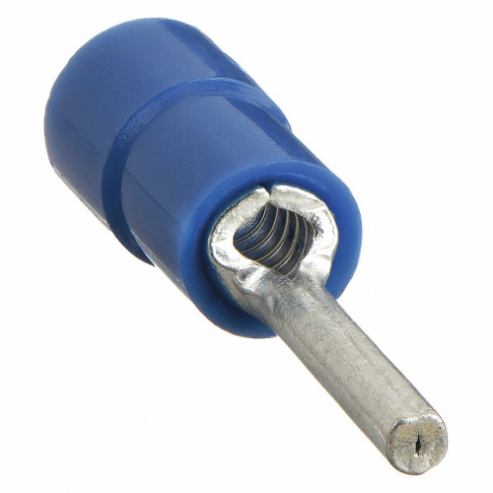

| Item | Pin Terminal |
| Barrel Inside Dia. | 0.075" |
| Barrel Inside Diameter | 0.09" |
| Color Code | Blue |
| Connection Material | Copper |
| Connection Type | Crimp |
| Diameter (d) | 0.075" |
| Dimension E | 0.47" |
| Insulation Color | Blue |
| Insulation Material | Vinyl |
| Insulation Type | Vinyl |
| Max. Insulation Outer Dia. | 0.17" |
| Max. Temp. | 167°F |
| Max. Voltage | 600V |
| Maximum Conductor Size | 14 AWG |
| Min. Conductor Size | 16 AWG |
| Overall Length | 0.9" |
| Seam | Butted |
| Solution For | Wireless Network Infrastructure Accessories |
| Terminal Connection | Crimp |
| Wire Size | 16 AWG to 14 AWG |
| Barrel Id | 0.075" |
| Maximum Temperature | 167°F |
| Maximum Voltage | 600V |
| Standards | UL LISTED/CSA CERTIFIED |
| Wire Range | 16 AWG to 14 AWG |
| Ship weight (kg) | 0.09 |
| Ship height (cm) | 7.11 |
| Ship length (cm) | 2.29 |
| Ship width (cm) | 4.32 |
| HS code | 8536904000 |
| Country of Origin | TW |
| Product | Model | Barrel Inside Dia. | Color Code | Overall Length | Wire Range | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|
 |
7100054896 | 0.075" | Red | 0.9" | 22 to 18 AWG | 100 | €101.03 | |
 |
7100055061 | 0.11" | Yellow | 1.06" | 12 to 10 AWG | 50 | €98.13 |
