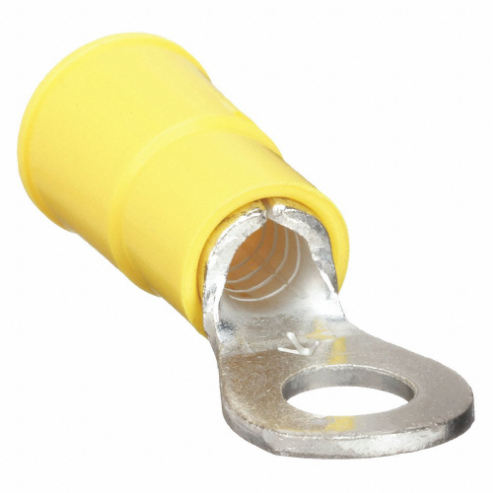

| Item | Ring Terminal |
| Color Code | Yellow |
| Connection Material | Copper |
| Connection Type | Crimp |
| Insulation Color | Yellow |
| Insulation Material | Vinyl |
| Insulation Type | Vinyl |
| Max. Temp. | 221°F |
| Max. Voltage | 600V |
| Maximum Wire Size | 10 AWG |
| Min. Wire Size | 12 AWG |
| Overall Length | 1.03" |
| Seam | Butted |
| Seam Style | Butted |
| Stud Size | #10 |
| Terminal Connection | Crimp |
| Terminal Connection Type | Crimp |
| Terminal Type | Standard |
| Termination Style | Crimp |
| Ship weight (kg) | 0.18 |
| Ship height (cm) | 7.11 |
| Ship length (cm) | 2.62 |
| Ship width (cm) | 4.06 |
| HS code | 8536904000 |
| Country of Origin | US |
| Product | Model | Color Code | Insulation Type | Max. Temp. | Overall Length | Seam | Stud Size | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
 |
M10-8RK | Bare | Noninsulated | 347 Degrees F | 0.73" | Brazed | #8 | 500 | €290.91 | |
 |
M10-4R/SK | Bare | Noninsulated | 347 Degrees F | 0.68" | Brazed | #4 | 500 | €313.68 | |
 |
M10-10RK | Bare | Noninsulated | 347 Degrees F | 0.73" | Brazed | #10 | 500 | €279.31 | |
 |
M10-6RK | Bare | Noninsulated | 347 Degrees F | 0.73" | Brazed | #6 | 500 | €283.02 | |
 |
M10-38R/SK | Bare | Noninsulated | 347 Degrees F | 0.96" | Brazed | 3/8" | 500 | €371.49 | |
 |
M10-12RK | Bare | Noninsulated | 347 Degrees F | 1.19" | Brazed | 1/2" | 500 | €536.37 | |
 |
MVU10-14R/SK | Yellow | Vinyl | 221 Degrees F | 1.26" | Butted | 1/4" | 500 | €377.33 |
