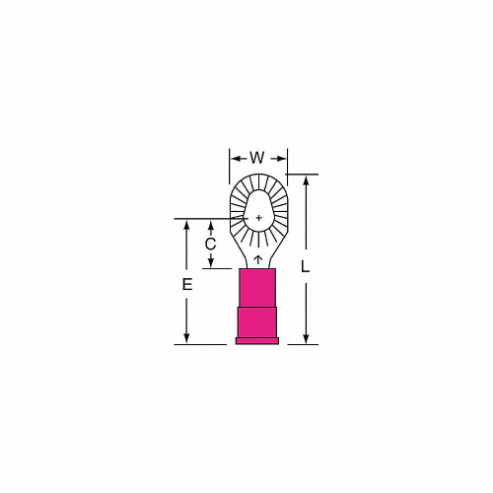

| Item | Ring Terminal |
| Color Code | Red |
| Connection Material | Copper |
| Connection Type | Crimp |
| Insulation Color | Red |
| Insulation Material | Vinyl |
| Insulation Type | Vinyl |
| Max. Temp. | 221°F |
| Max. Voltage | 600V |
| Maximum Conductor Size | 18 AWG |
| Maximum Wire Size | 18 AWG |
| Min. Conductor Size | 22 AWG |
| Min. Wire Size | 22 AWG |
| Overall Length | 1.01" |
| Seam | Brazed |
| Seam Style | Brazed |
| Stud Size | #6, #8, #10 |
| Terminal Connection | Crimp |
| Terminal Connection Type | Crimp |
| Terminal Type | Multi Stud |
| Termination Style | Crimp |
| Contact Material | Copper |
| Maximum Operating Temperature | 221°F |
| Maximum Voltage | 600V |
| Minimum Wire Size | 22 AWG |
| Standards | CSA CERTIFIED, UL LISTED |
| Tongue Width | 0.34" |
| Ship weight (kg) | 1.08 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.57 |
| Ship width (cm) | 2.54 |
| HS code | 8536904000 |
| Country of Origin | US |
| Product | Model | Color Code | Overall Length | Wire Range | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|
 |
7000132259 | Blue | 1.01" | 16 to 14 AWG | 1 | €816.70 | |
 |
7000132269 | Yellow | 1.19" | 12 to 10 AWG | 500 | €416.78 |
