| Item | Ring Terminal |
| Color Code | Blue |
| Connection Material | Copper |
| Connection Orientation | Straight |
| Connection Type | Crimp |
| Contact Material | Copper |
| Contact Plating | Tin |
| Insulated | Insulated Barrel |
| Insulation Color | Blue |
| Insulation Material | Vinyl |
| Insulation Type | Vinyl |
| Max. Temp. | 221°F |
| Max. Voltage | 600V |

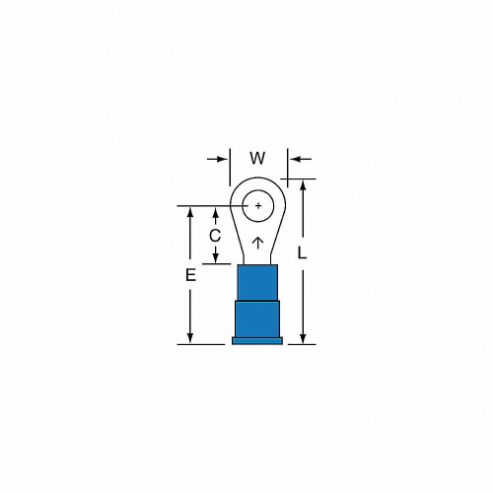

| Overall Length | 0.93" |
| Seam | Brazed |
| Stud Size | #8 |
| Terminal Connection | Crimp |
| Terminal Connection Type | Crimp |
| Terminal Type | Standard |
| Ship weight (kg) | 1.08 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.36 |
| Ship width (cm) | 2.54 |
| HS code | 8536904000 |
| Country of Origin | US |
| Product | Model | Color Code | Overall Length | Stud Size | Wire Range | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|
 |
7100040995 | Red | 0.93" | #10 | 22 to 18 AWG | 1 | €660.49 | |
 |
7100084105 | Blue | 0.8" | #6 | 16 to 14 AWG | 1 | €745.10 | |
 |
7000031422 | Yellow | 1.03" | #10 | 12 to 10 AWG | 500 | €421.50 | |
 |
7100041010 | Red | 0.8" | #6 | 22 to 18 AWG | 1 | €660.49 | |
 |
7100163996 | Blue | 0.8" | #4 | 16 to 14 AWG | 1 | €723.88 | |
 |
7100007053 | Yellow | 1.26" | 1/4" | 12 to 10 AWG | 500 | €444.03 | |
 |
7100164087 | Yellow | 1.5" | 1/2" | 12 to 10 AWG | 500 | €692.88 |
