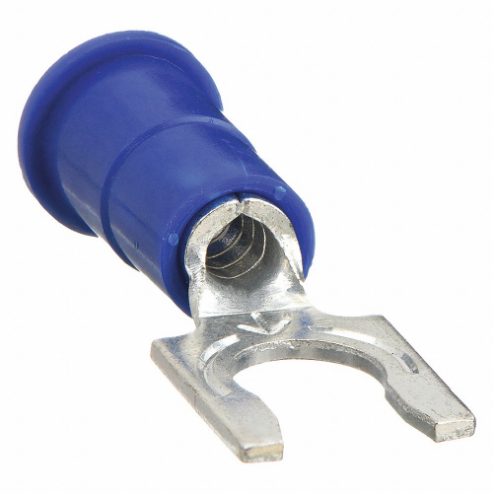

| Item | Fork Terminal |
| Color Code | Blue |
| Connection Material | Copper |
| Connection Type | Lug |
| Insulation Color | Blue |
| Insulation Material | Vinyl |
| Insulation Type | Vinyl |
| Max. Temp. | 221°F |
| Max. Voltage | 600V |
| Overall Length | 22/25" |
| Seam | Brazed |
| Stud Size | #6 |
| Terminal Type | Locking |
| Wire Size | 16 AWG to 14 AWG |
| Barrel Style | Funnel Entry |
| Contact Finish | Tin |
| Contact Material | Copper |
| Insulation Coverage | Partial Coverage |
| Maximum Operating Temperature | 221°F |
| Maximum Voltage | 1000V |
| Maximum Wire Size | 14 AWG |
| Minimum Operating Temperature | -40°F |
| Minimum Wire Size | 16 AWG |
| Rohs Compliant | Yes |
| Seam Style | Brazed |
| Special Features | Spring-Like Tongue Firmly Fits Around the Stud |
| Standards | CSA, UL |
| Terminal Shape | Fork |
| Termination | Crimp Termination Only |
| Termination Style | Crimp |
| Tongue Length | 0.43" |
| Tongue Width | 1/4" |
| Ship weight (kg) | 0.09 |
| Ship height (cm) | 8.38 |
| Ship length (cm) | 2.24 |
| Ship width (cm) | 23.11 |
| HS code | 8536904000 |
| Country of Origin | US |
| Product | Model | Color Code | Overall Length | Stud Size | Wire Range | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|
 |
7010320679 | Red | 0.88" | #6 | 22 to 18 AWG | 100 | €138.34 | |
|
7000133370 | Red | 0.88" | #10 | 22 to 18 AWG | 100 | €138.34 | |
|
7000133368 | Blue | 0.88" | #10 | 16 to 14 AWG | 100 | €138.34 | |
 |
7010320678 | Yellow | 1.03" | #10 | 12 to 10 AWG | 50 | €86.79 | |
|
7000133367 | Yellow | 1.24" | 1/4" | 12 to 10 AWG | 50 | €111.74 | |
 |
7010398197 | Red | 0.88" | #8 | 22 to 18 AWG | 100 | €138.34 | |
 |
7010351287 | Blue | 0.88" | #8 | 16 to 14 AWG | 100 | €138.34 |
