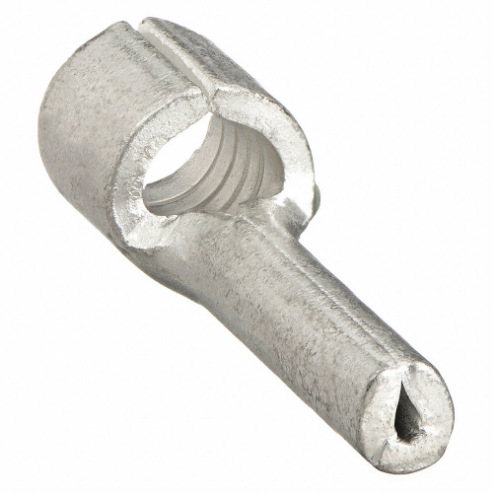

| Item | Pin Terminal |
| Barrel Inside Dia. | 2/25" |
| Color Code | Bare |
| Connection Material | Copper |
| Connection Type | Crimp |
| Insulation Color | Bare |
| Insulation Type | Non Insulated |
| Max. Temp. | 221°F |
| Max. Voltage | 600V |
| Overall Length | 0.73" |
| Seam | Butted |
| Wire Size | 16 AWG to 14 AWG |
| Barrel Id | 0.08" |
| Maximum Temperature | 221°F |
| Maximum Voltage | 600V |
| Standards | UL LISTED/CSA CERTIFIED |
| Wire Range | 16 AWG to 14 AWG |
| Ship weight (kg) | 0.08 |
| Ship height (cm) | 7.11 |
| Ship length (cm) | 1.85 |
| Ship width (cm) | 4.06 |
| HS code | 8536904000 |
| Country of Origin | TW |
| Product | Model | Barrel Inside Dia. | Color Code | Insulation Type | Max. Temp. | Overall Length | Seam | Wire Range | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
7010351293 | 0.08" | Bare | Noninsulated | 347 Degrees F | 0.73" | Butted | 22 to 18 AWG | 100 | €63.93 | |
|
7010304197 | 0.11" | Bare | Noninsulated | 347 Degrees F | 0.81" | Butted | 12 to 10 AWG | 50 | €31.45 | |
 |
MNG18-47PX-A | 0.08" | Red | Nylon | 221 Degrees F | 0.93" | Brazed | 22 to 18 AWG | 100 | €220.41 |
