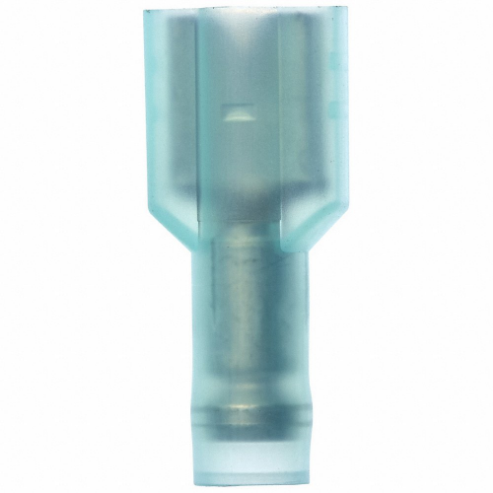

| Item | Female Disconnect |
| Barrel Inside Dia. | 2/25" |
| Barrel Length | 1/4" |
| Barrel Outside Dia. | 0.145" |
| Barrel Size | Standard |
| Barrel Style | Interlocking |
| Color Code | Blue |
| Connection Type | Crimp |
| Contact Finish | Tin |
| Contact Material | Brass |
| Disconnect Type | Female |
| Fastener Orientation | Female |
| Insulation | Full |
| Insulation Color | Blue |
| Insulation Coverage | Full Coverage |
| Insulation Material | Nylon |
| Insulation Type | Nylon |
| Male Tab Width (w') | 1/4" |
| Mates With Female Width | 1/4" |
| Mates With Male Tab Width (w') | 1/4" |
| Max. Temp. | 221°F |
| Max. Voltage | 600V |
| Max. Wire Size | 14 AWG |
| Minimum Wire Size | 16 AWG |
| Overall Length | 0.83" |
| Rohs Compliant | Yes |
| Seam | Brazed |
| Seam Style | Butted |
| Tab Size | 0.032" x 0.25" |
| Tab Thickness | 0.032" |
| Tab Width | 1/4" |
| Terminal Style | Fully Insulated |
| Terminal Type | Female Socket , Socket |
| Termination Style | Crimp |
| Wire Size | 16 AWG to 14 AWG |
| Barrel Id | 0.08" |
| Barrel Od | 0.145" |
| Maximum Operating Temperature | 221°F |
| Maximum Voltage | 600V |
| Maximum Wire Size | 14 AWG |
| Minimum Operating Temperature | -40°F |
| Special Features | Allows for Quick and Easy Disconnect of Wires, Dents and Rolled Edges of this Female Disconnect Terminal Offer Excellent Holding Force |
| Standards | CSA CERTIFIED, UL LISTED |
| Ship weight (kg) | 1.55 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.11 |
| Ship width (cm) | 2.54 |
| HS code | 8536904000 |
| Country of Origin | US |
| Product | Model | Barrel Inside Dia. | Color Code | Overall Length | Seam | Wire Range | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|
 |
7100164297 | 0.08" | Red | 0.83" | Butted | 22 to 18 AWG | 1 | €1,515.85 | |
 |
7100164295 | 0.165" | Yellow | 0.94" | Brazed | 12 to 10 AWG | 500 | €552.78 |
