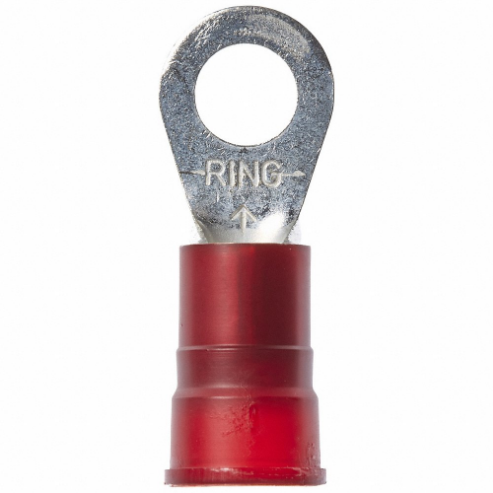

| Item | Ring Terminal |
| Barrel Inside Diameter | 0.07" |
| Color Code | Red |
| Connection Material | Copper |
| Connection Type | Crimp |
| Hole Spacing | 2/5" |
| Insulation | Nylon |
| Insulation Color | Red |
| Insulation Coverage | Partial Coverage |
| Insulation Material | Nylon |
| Insulation Type | Nylon |
| Max. Temp. | 221°F |
| Max. Voltage | 600V |
| Maximum Wire Size | 18 AWG |
| Min. Wire Size | 22 AWG |
| Overall Length | 1.07" |
| Rohs Compliant | Yes |
| Seam | Brazed |
| Seam Style | Butted |
| Special Features | Corrosion-Resistant, Funnel-Designed, Seamless Brass Sleeve |
| Stud Size | 1/4" |
| Terminal Connection | Crimp |
| Terminal Connection Type | Crimp |
| Terminal Shape | Standard Ring Tongue |
| Terminal Type | Standard |
| Termination Style | Crimp |
| Barrel Length | 0.25" |
| Barrel Style | Butted |
| Contact Finish | Tin |
| Contact Material | Copper |
| Maximum Operating Temperature | 221°F |
| Maximum Voltage | 1000V |
| Minimum Wire Size | 22 AWG |
| Standards | CSA CERTIFIED, UL LISTED |
| Termination | Crimp Termination Only |
| Tongue Length | 0.82" |
| Tongue Thickness | 0.03" |
| Tongue Width | 0.47" |
| Ship weight (kg) | 0.15 |
| Ship height (cm) | 9.14 |
| Ship length (cm) | 2.72 |
| Ship width (cm) | 4.32 |
| HS code | 8536904000 |
| Country of Origin | US |
| Product | Model | Color Code | Overall Length | Stud Size | Wire Range | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|
 |
7000133295 | Yellow | 1.03" | #6 | 12 to 10 AWG | 50 | €104.94 | |
 |
7100164002 | Blue | 0.91" | #8 | 16 to 14 AWG | 1 | €867.22 | |
 |
7100164003 | Blue | 0.94" | #8 | 16 to 14 AWG | 1 | €1,026.47 | |
 |
7100164004 | Blue | 0.94" | #10 | 16 to 14 AWG | 1 | €891.52 | |
 |
7000132247 | Blue | 0.91" | #10 | 16 to 14 AWG | 1 | €1,044.42 | |
 |
7100163930 | Red | 1.07" | 1/4" | 22 to 18 AWG | 1 | €1,175.88 | |
 |
7100163931 | Red | 1.12" | 3/8" | 22 to 18 AWG | 1 | €1,108.28 |
