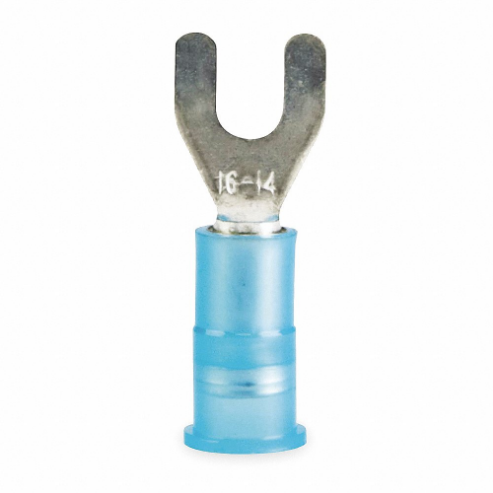

| Item | Fork Terminal |
| Color Code | Blue |
| Connection Material | Copper |
| Connection Type | Lug |
| Insulation Color | Blue |
| Insulation Material | Nylon |
| Insulation Type | Nylon |
| Max. Temp. | 221°F |
| Max. Voltage | 600V |
| Overall Length | 0.91" |
| Seam | Brazed |
| Stud Size | #6 |
| Terminal Type | Standard |
| Wire Size | 16 AWG to 14 AWG |
| Barrel Length | 0.46" |
| Contact Finish | Tin |
| Contact Material | Copper |
| Maximum Operating Temperature | 221°F |
| Maximum Voltage | 600V |
| Maximum Wire Size | 14 AWG |
| Minimum Operating Temperature | -40°F |
| Minimum Wire Size | 16 AWG |
| Rohs Compliant | Yes |
| Seam Style | Butted |
| Special Features | Funnel-Designed, Seamless Brass Sleeve Offers Easy Insertion of Wires |
| Standards | CSA CERTIFIED, UL LISTED |
| Terminal Shape | Standard Fork |
| Termination | Crimp Termination Only |
| Termination Style | Crimp |
| Tongue Thickness | 0.03" |
| Tongue Width | 0.34" |
| Ship weight (kg) | 0.13 |
| Ship height (cm) | 7.11 |
| Ship length (cm) | 2.31 |
| Ship width (cm) | 4.32 |
| HS code | 8536904000 |
| Country of Origin | US |
| Product | Model | Color Code | Overall Length | Stud Size | Wire Range | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|
 |
7000132250 | Blue | 0.91" | #10 | 16 to 14 AWG | 1 | €1,124.87 | |
 |
7000133277 | Red | 0.89" | #6 | 22 to 18 AWG | 100 | €228.01 | |
 |
7100022868 | Blue | 0.91" | #8 | 16 to 14 AWG | 100 | €230.44 | |
 |
7000133298 | Yellow | 1.03" | #8 | 12 to 10 AWG | 50 | €100.86 |
