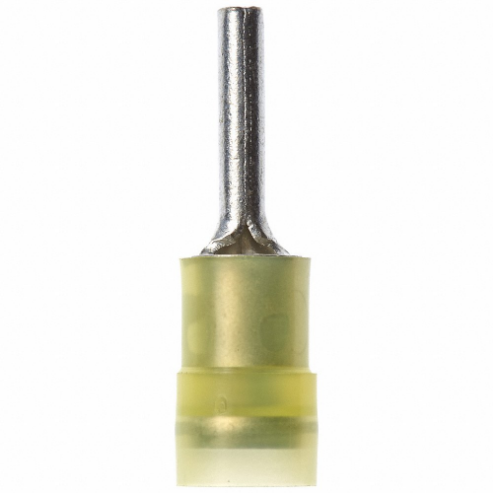

| Item | Pin Terminal |
| Barrel Inside Dia. | 0.11" |
| Barrel Inside Diameter | 0.11" |
| Barrel Outside Diameter | 0.27" |
| Color Code | Yellow |
| Connection Material | Copper |
| Connection Type | Crimp |
| Insulation Color | Yellow |
| Insulation Coverage | Partial Coverage |
| Insulation Material | Nylon |
| Insulation Type | Nylon |
| Max. Insulation Outside Dia. | 0.145" |
| Max. Temp. | 221°F |
| Max. Voltage | 600V |
| Maximum Wire Size | 10 AWG |
| Min. Wire Size | 12 AWG |
| Overall Length | 1.1" |
| Pin Dia. | 0.11" |
| Rohs Compliant | Yes |
| Seam | Brazed |
| Seam Style | Butted |
| Terminal Connection | Crimp |
| Termination Style | Crimp |
| Wire Size | 12 AWG to 10 AWG |
| Ship weight (kg) | 0.12 |
| Ship height (cm) | 7.11 |
| Ship length (cm) | 2.79 |
| Ship width (cm) | 4.06 |
| HS code | 8536904000 |
| Country of Origin | TW |
| Product | Model | Barrel Inside Dia. | Color Code | Overall Length | Wire Range | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|
 |
7000133348 | 0.08" | Blue | 0.91" | 16 to 14 AWG | 100 | €220.41 |
