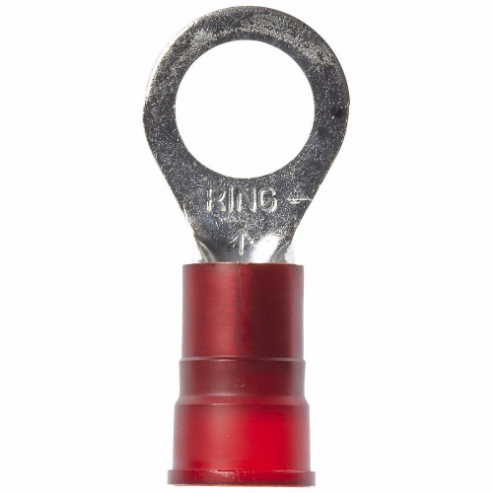

| Item | Ring Terminal |
| Barrel Inside Diameter | 0.18" |
| Color Code | Red |
| Connection Material | Copper |
| Connection Type | Crimp , Lug |
| Connection Width | 3/8" |
| For Wire Size | 8 AWG |
| Hole Spacing | 0.45" |
| Insulation | Nylon |
| Insulation Color | Red |
| Insulation Coverage | Partial Coverage |
| Insulation Material | Nylon |
| Insulation Type | Nylon |
| Max. Temp. | 221°F |
| Max. Voltage | 600V |
| Maximum Wire Size | 8 AWG |
| Min. Wire Size | 8 AWG |
| Overall Length | 1.38" |
| Rohs Compliant | Yes |
| Seam | Brazed |
| Seam Style | Brazed |
| Special Features | Corrosion-Resistant, Flared Portion Of The Nylon Sleeve Offers Easy Insertion Of Wires, Reliable Performance, Secure Fit |
| Stud Size | 3/8" |
| Terminal Connection | Crimp |
| Terminal Connection Type | Crimp |
| Terminal Shape | Standard Ring Tongue |
| Terminal Type | Ring |
| Termination Style | Crimp |
| Wire Range | 8 AWG |
| Barrel Length | 0.31" |
| Barrel Style | Brazed |
| Contact Finish | Tin |
| Contact Material | Copper |
| Maximum Operating Temperature | 221°F |
| Maximum Voltage | 1000V |
| Minimum Wire Size | 8 AWG |
| Standards | CSA CERTIFIED, UL LISTED |
| Termination | Crimp Termination Only |
| Tongue Length | 1.07" |
| Tongue Thickness | 0.05" |
| Tongue Width | 0.59" |
| Ship weight (kg) | 0.02 |
| Ship height (cm) | 10.92 |
| Ship length (cm) | 3.51 |
| Ship width (cm) | 4.32 |
| HS code | 8536904000 |
| Country of Origin | US |
| Product | Model | Color Code | Connection Type | Overall Length | Stud Size | Terminal Type | Wire Range | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
 |
7100164997 | Yellow | Crimp | 0.6" | #4 | Standard | 26 to 24 AWG | 1 | €2,202.31 | |
 |
7100165003 | Yellow | Crimp | 0.69" | #8 | Standard | 26 to 24 AWG | 1 | €2,202.31 | |
 |
7100164999 | Yellow | Crimp | 0.6" | #6 | Standard | 26 to 24 AWG | 1 | €2,270.40 | |
 |
7100077614 | Red | Crimp | 1.26" | #10 | Standard | 8 AWG | 200 | €206.16 | |
 |
7010397559 | Red | Crimp | 1.26" | 1/4" | Standard | 8 AWG | 200 | €212.41 | |
 |
7000132144 | Red | Crimp | 1.380" | 5/16" | Standard | 8 AWG | 200 | €431.66 | |
 |
7000132147 | Blue | Crimp | 1.5" | 1/4" | Standard | 6 AWG | 200 | €451.92 |
