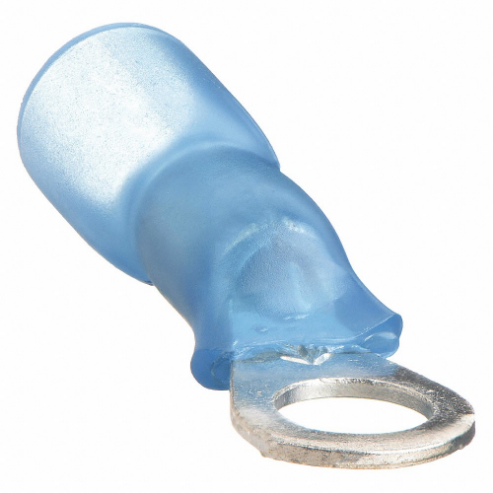

| Item | Ring Terminal |
| Color Code | Blue |
| Connection Material | Copper |
| Connection Type | Crimp |
| Connection Width | 3/8" |
| Insulation Color | Blue |
| Insulation Type | Heat Shrink |
| Max. Temp. | 221°F |
| Max. Voltage | 600V |
| Maximum Conductor Size | 14 AWG |
| Maximum Wire Size | 14 AWG |
| Min. Conductor Size | 16 AWG |
| Min. Wire Size | 16 AWG |
| Overall Length | 1.1" |
| Seam | Brazed |
| Seam Style | Brazed |
| Stud Size | 3/8" |
| Terminal Connection | Crimp |
| Terminal Connection Type | Crimp |
| Terminal Type | Standard |
| Termination Style | Crimp |
| Contact Material | Copper |
| Maximum Operating Temperature | 221°F |
| Maximum Voltage | 600V |
| Minimum Wire Size | 16 AWG |
| Standards | CSA CERTIFIED, UL LISTED |
| Termination | Crimp Termination with Heat Shrink |
| Tongue Width | 0.47" |
| Ship weight (kg) | 0.04 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.79 |
| Ship width (cm) | 2.54 |
| HS code | 8536904000 |
| Country of Origin | US |
| Product | Model | Color Code | Overall Length | Stud Size | Wire Range | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|
 |
7100164288 | Yellow | 1.2" | 1/4" | 12 to 10 AWG | 250 | €255.04 | |
 |
7100164282 | Red | 1" | #8 | 22 to 18 AWG | 250 | €226.98 | |
 |
7100164280 | Red | 1" | #6 | 22 to 18 AWG | 1 | €129.53 | |
 |
7100164267 | Yellow | 1.1" | #10 | 12 to 10 AWG | 250 | €427.33 | |
 |
7100164270 | Yellow | 1.2" | 3/8" | 12 to 10 AWG | 250 | €267.89 | |
 |
7100164266 | Yellow | 1.1" | #8 | 12 to 10 AWG | 1 | €177.00 | |
 |
7000132449 | Blue | 1" | #10 | 16 to 14 AWG | 250 | €226.98 |
