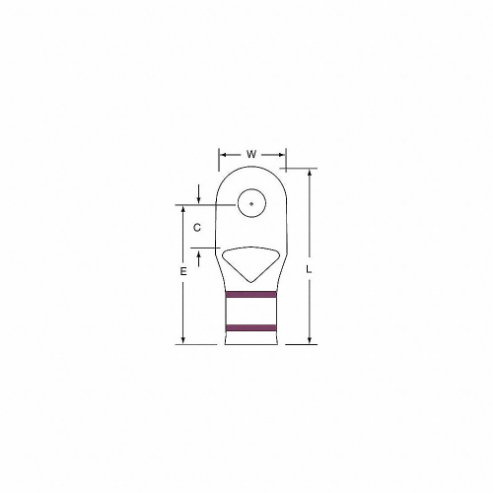

| Item | Ring Terminal |
| Barrel Inside Dia. | 0.34" |
| Barrel Length | Short |
| Barrel Size | Short |
| Barrel Style | Seamless |
| Cable Size | 2 AWG |
| Color Code | Brown |
| Connector Type | Seamless Barrel , Straight Barrel |
| Contact Finish | Tin |
| Die Code | 10 |
| For Conductor Material | Copper |
| For Max. Stranded Copper Wire Size | 2 AWG |
| For Stud Size | 1/4" |
| For Wire Type | Stranded |
| Inspection Hole | No |
| Length | 1 3/5" |
| Length (straight Wireway) | 1 3/5" |
| Material | Copper |
| Peep Hole | No |
| Plate Material | Tin |
| Rohs Compliant | Yes |
| Seam Style | Seamless |
| Special Features | Non-Insulated Construction |
| Stud Size | 1/4" |
| Style | Ring |
| Termination Style | Crimp |
| Tongue Angle | Straight |
| Tongue Style | Ring |
| Width | 13/20" |
| Wire Size Range | 2 AWG |
| Wire Size Ranges | 2 AWG |
| Barrel Id | 0.34" |
| Connection Orientation | Straight |
| Maximum Wire Size | 2 AWG |
| Number Of Holes | 1 |
| Overall Length | 1.69" |
| Overall Width | 0.65" |
| Standards | UL LISTED |
| Strip Length | 1/2" |
| Tongue Thickness | 0.1" |
| Tongue Width | 0.65" |
| Ship weight (kg) | 0.16 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 4.29 |
| Ship width (cm) | 1.65 |
| HS code | 8536904000 |
| Country of Origin | US |
| Product | Model | Cable Size | Color Code | Die Code | Length | Stud Size | Width | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
 |
MC2-516RX | 2 AWG | Brown | 10 | 1.62" | 5/16" | 0.65" | 100 | €654.51 | |
 |
MC2-38RX | 2 AWG | Brown | 10 | 1.75" | 3/8" | 0.65" | 100 | €654.51 | |
 |
MC250-12RX | 250 kcmil | Yellow | 16 | 2.39" | 1/2" | 1.13" | 60 | €1,114.25 |
