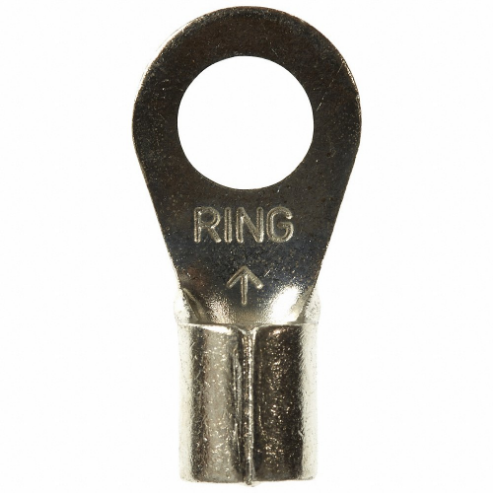

| Item | Ring Terminal |
| Barrel Inside Diameter | 0.18" |
| Color Code | Bare |
| Connection Material | Copper |
| Connection Type | Crimp , Lug |
| Connection Width | 1/4" |
| For Wire Size | 8 AWG |
| Hole Spacing | 2/5" |
| Insulation Color | Bare |
| Insulation Type | Non Insulated |
| Max. Temp. | 347°F |
| Max. Voltage | 600V |
| Maximum Wire Size | 8 AWG |
| Min. Wire Size | 8 AWG |
| Overall Length | 0.95" |
| Product Color | Metal |
| Rohs Compliant | Yes |
| Seam | Brazed |
| Seam Style | Brazed |
| Special Features | Beveled Mouth, Corrosion-Resistant, Reliable Performance, Secure Fit |
| Stud Size | 1/4" |
| Terminal Connection | Crimp |
| Terminal Connection Type | Crimp |
| Terminal Shape | Standard Ring Tongue |
| Terminal Type | Ring |
| Termination Style | Crimp |
| Wire Range | 8 AWG |
| Barrel Length | 0.31" |
| Barrel Style | Brazed |
| Contact Finish | Tin |
| Contact Material | Copper |
| Insulation | None |
| Insulation Coverage | None |
| Maximum Operating Temperature | 347°F |
| Maximum Voltage | 1000V |
| Minimum Wire Size | 8 AWG |
| Standards | CSA CERTIFIED, UL LISTED |
| Termination | Crimp Termination Only |
| Tongue Length | 0.64" |
| Tongue Thickness | 0.05" |
| Tongue Width | 0.47" |
| Ship weight (kg) | 0.07 |
| Ship height (cm) | 11.18 |
| Ship length (cm) | 2.41 |
| Ship width (cm) | 4.57 |
| HS code | 8536904000 |
| Country of Origin | US |
| Product | Model | Connection Type | Overall Length | Stud Size | Terminal Type | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|
 |
M8-10R/SK | Crimp | 0.95" | #10 | Standard | 200 | €311.43 | |
 |
M8-14R/SK | Crimp | 0.95" | 1/4" | Standard | 200 | €317.43 | |
 |
M8-38RK | Crimp | 1.06" | 3/8" | Standard | 200 | €364.60 | |
 |
M8-516RK | Crimp | 1.06" | 5/16" | Standard | 200 | €362.71 | |
 |
M8-12R/SK | Crimp | 1.41" | 1/2" | Standard | 200 | €434.16 | |
 |
M838RX | Lug | 1.06" | 3/8" | Ring | 10 | €31.49 |
