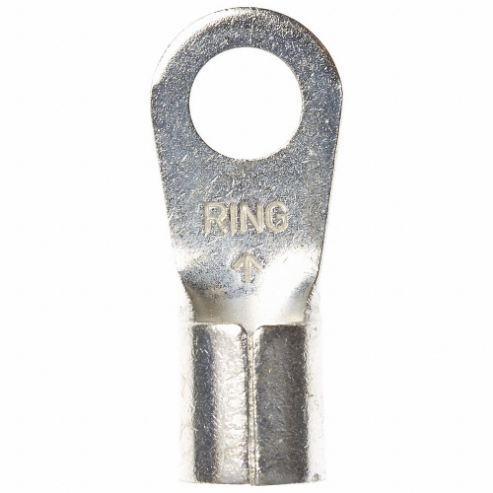

| Item | Ring Terminal |
| Barrel Inside Diameter | 1/4" |
| Color Code | Bare |
| Connection Material | Copper |
| Connection Type | Crimp , Lug |
| For Wire Size | 6 AWG |
| Hole Spacing | 13/25" |
| Insulation Color | Bare |
| Insulation Type | Non Insulated |
| Max. Temp. | 347°F |
| Max. Voltage | 600V |
| Maximum Wire Size | 6 AWG |
| Min. Wire Size | 6 AWG |
| Overall Length | 1.42" |
| Rohs Compliant | Yes |
| Seam | Brazed |
| Seam Style | Brazed |
| Special Features | Beveled Mouth, Corrosion-Resistant, Reliable Performance, Secure Fit |
| Stud Size | 1/4" |
| Terminal Connection | Crimp |
| Terminal Connection Type | Crimp |
| Terminal Shape | Standard Ring Tongue |
| Terminal Type | Ring |
| Termination Style | Crimp |
| Wire Range | 6 AWG |
| Barrel Length | 0.39" |
| Barrel Style | Brazed |
| Contact Finish | Tin |
| Contact Material | Copper |
| Insulation | None |
| Insulation Coverage | None |
| Maximum Operating Temperature | 347°F |
| Maximum Voltage | 1000V |
| Minimum Wire Size | 6 AWG |
| Standards | CSA CERTIFIED, UL LISTED |
| Termination | Crimp Termination Only |
| Tongue Length | 1.03" |
| Tongue Thickness | 0.05" |
| Tongue Width | 0.47" |
| Ship weight (kg) | 0.07 |
| Ship height (cm) | 11.18 |
| Ship length (cm) | 3.61 |
| Ship width (cm) | 4.57 |
| HS code | 8536904000 |
| Country of Origin | US |
| Product | Model | Connection Type | Overall Length | Stud Size | Terminal Type | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|
 |
M6-38RK | Crimp | 1.22" | 3/8" | Standard | 200 | €449.75 | |
 |
M6-14R/SK | Crimp | 1.42" | 1/4" | Standard | 200 | €342.67 | |
 |
M6-10R/SK | Crimp | 1.14" | #10 | Standard | 200 | €340.28 | |
 |
M6-516RK | Crimp | 1.22" | 5/16" | Standard | 200 | €370.59 | |
 |
M6-12R/SK | Crimp | 1.42" | 1/2" | Standard | 200 | €481.35 | |
 |
M638RX | Lug | 1.22" | 3/8" | Ring | 10 | €43.92 |
