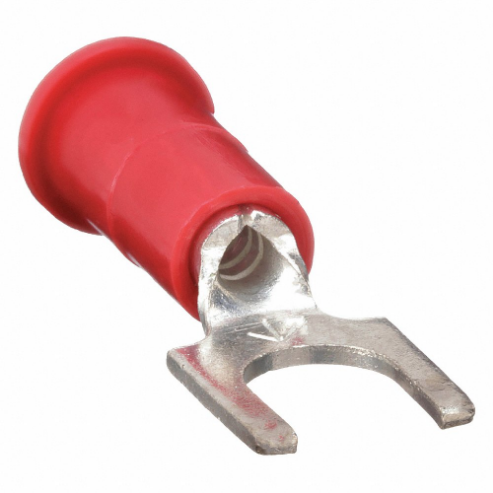

| Item | Fork Terminal |
| Barrel Inside Dia. | 0.07" |
| Color Code | Red |
| Connection Material | Copper |
| Connection Type | Crimp |
| Insulation Color | Red |
| Insulation Dia | 0.145" |
| Insulation Material | Vinyl |
| Insulation Type | Vinyl |
| Max. Temp. | 221°F |
| Max. Voltage | 1000V |
| Maximum Wire Size | 18 AWG |
| Min. Wire Size | 22 AWG |
| Overall Length | 0.9" |
| Seam | Butted |
| Seam Style | Butted |
| Stud Size | #8 |
| Terminal Connection | Crimp |
| Terminal Type | Locking |
| Wire Size | 22 AWG to 18 AWG |
| Maximum Operating Temperature | 221°F |
| Maximum Voltage | 1000V |
| Minimum Wire Size | 22 AWG |
| Standards | CSA CERTIFIED, UL LISTED |
| Tongue Width | 0.3" |
| Ship weight (kg) | 0.03 |
| Ship height (cm) | 10.16 |
| Ship length (cm) | 2.29 |
| Ship width (cm) | 0.64 |
| HS code | 8536904000 |
| Country of Origin | US |
| Product | Model | Color Code | Overall Length | Stud Size | Terminal Type | Wire Range | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|
 |
7010321019 | Yellow | 1.03" | #10 | Standard | 12 to 10 AWG | 25 | €25.91 | |
|
FV10-8Q | Yellow | 1.03" | #8 | Standard | 12 to 10 AWG | 25 | €24.99 | |
 |
FV14-10Q | Blue | 0.9" | #10 | Standard | 16 to 14 AWG | 25 | €18.18 | |
 |
FV14-6Q | Blue | 0.9" | #6 | Standard | 16 to 14 AWG | 25 | €20.21 | |
|
FV14-8Q | Blue | 0.9" | #8 | Standard | 16 to 14 AWG | 25 | €20.73 | |
|
LFV10-10Q | Yellow | 1.03" | #10 | Locking | 12 to 10 AWG | 25 | €25.60 | |
|
LFV10-6Q | Yellow | 1.03" | #6 | Locking | 12 to 10 AWG | 25 | €25.11 |
