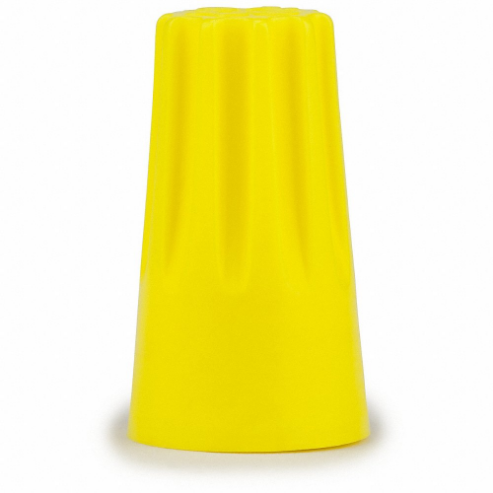

| Item | Twist On Wire Connector |
| Application | General Purpose |
| Color | Yellow |
| Flame Retardant | No |
| For Conductor Material | Copper |
| Height | 0.95" |
| High Temperature Application | No |
| Length | 13/25" |
| Max. Single Wire Size | 20 mm |
| Max. Voltage | 600V |
| Max. Wire Combination | 2#14 With 1-2#18 |
| Max. Wire Size | 10 AWG |
| Maximum Conductors | 7 |
| Maximum Single Wire Size | 12 AWG |
| Min. Wire Combination | 4 to 5#22 |
| Min. Wire Size | 22 AWG |
| Minimum Single Wire Size | 18 AWG , 22 AWG |
| Rohs Compliant | Yes |
| Series | H Series |
| Type | Wire |
| Width | 0.55" |
| Wire Connector Style | Wing |
| Wire Material | Copper |
| Contact Material | Steel |
| Insulation Material | Vinyl |
| Maximum Operating Temperature | 221°F |
| Maximum Voltage | 600V |
| Maximum Wire Combination | (2) 14 AWG with (1) to (2) 18 AWG |
| Minimum Wire Combination | (4) 22 AWG |
| Overall Height | 0.95" |
| Overall Width | 0.55" |
| Special Features | Wire Connectors Make it Quick and Easy to Match the Right Connector to the Size of the Wire, Work Equally Well With Either Solid or Stranded Copper Wire |
| Standards | CSA CERTIFIED, UL LISTED |
| Ship weight (kg) | 3.02 |
| Ship height (cm) | 2.41 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 1.4 |
| HS code | 8536904000 |
| Country of Origin | CN |
| Product | Model | Color | Conductor Size | Height | Length | Max. Voltage | Type | Width | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
7010348891 | Orange | 18-14 AWG | 0.86" | 0.44" | 600 | Wire | 0.43" | 1 | €239.88 | |
 |
7010293621 | Orange | 18-14 AWG | 0.86" | 0.44" | 600 | Electrical Spring | 0.43" | 10 | €1,559.04 | |
 |
7010320417 | Yellow | 18-12 AWG | 0.95" | 0.52" | 600 | Wire | 0.55" | 5 | €882.36 | |
 |
7010397048 | Blue | 22-16 AWG | 0.67" | 0.37" | 300 VAC | Wire | 0.39" | 10 | €1,793.87 | |
 |
7010349040 | Orange | 18-14 AWG | 0.86" | 0.44" | 600 | Wire | 0.43" | 1 | €264.14 | |
 |
7010303651 | Blue | 22-16 AWG | 0.67" | 0.37" | 300 VAC | Wire | 0.39" | 1 | €187.31 | |
 |
7010304019 | Blue | 22-16 AWG | 0.67" | 0.37" | 300 VAC | Wire | 0.39" | 1 | €198.28 |
