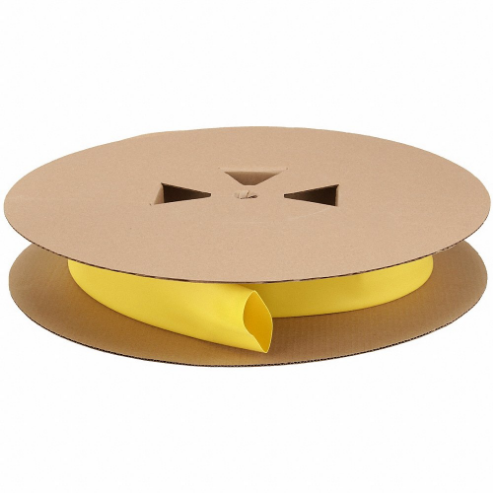

| Item | Heat Shrink Tubing |
| Cable Range | 1000 kcmil |
| Color | Yellow |
| I.d. After Shrinking | 1 1/2" |
| I.d. Before Shrinking | 3" |
| Length | 50 ft. |
| Material | Polyolefin |
| Max. Voltage | 600V |
| Shrink Temp. | 212°F |
| Temp. Range | -67°F to +275°F |
| Wall Thickness After Shrinking | 0.05" |
| Wall Type | Thin Wall |
| Wire Range | 1000 kcmil |
| Adhesive Lined | No |
| Dielectric Strength | 600V |
| Features | Balances Electrical, Physical and Chemical Properties, Shrink Fit Protection, Solder Joints, Strain Relief, Terminals and Connections |
| Flame Retardant | Yes |
| Max. Temp. Rating | 275°F |
| Min. Shrink Temp. | 212°F |
| Min. Temp. Rating | -67°F |
| Package Style | Cut to Length |
| Shrink Ratio | 2:1 |
| Shrink Tubing Properties | Acid and Alkali Resistant, Solvent Resistant |
| Standards | CSA CERTIFIED, ROHS 2011/65/EU, UL E39100 |
| Tubing Wall Type | Thin Wall |
| Use With Wire Size | 600 mcm to 2000 mcm |
| Ship weight (kg) | 4.43 |
| Ship height (cm) | 56.39 |
| Ship length (cm) | 54.86 |
| Ship width (cm) | 21.08 |
| HS code | 3926909980 |
| Country of Origin | US |
