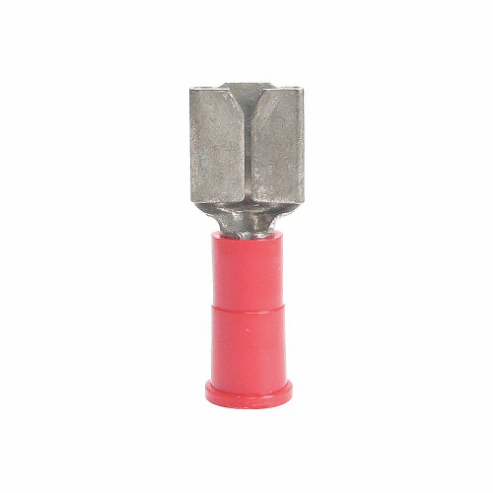

| Item | Female Disconnect |
| Barrel Inside Dia. | 2/25" |
| Barrel Length | 1/4" |
| Barrel Style | Butted |
| Connection Type | Crimp |
| Fastener Orientation | Female |
| Insulation | Partial |
| Insulation Color | Red |
| Insulation Material | Vinyl |
| Insulation Type | Vinyl |
| Length | 0.78" |
| Mates With Male Tab Width (w') | 0.187" |
| Max. Temp. | 221°F |
| Max. Voltage | 1000V |
| Maximum Insulation Outer Diameter | 0.145" |
| Overall Length | 0.87" |
| Pad Width | 0.187" |
| Seam | Butted |
| Tab Size | 0.02" x 0.187" |
| Terminal Style | Standard |
| Terminal Type | Disconnect |
| Thickness | 0.02" |
| Wire Size | 22 AWG to 18 AWG |
| Barrel Id | 0.08" |
| Connection Material | Tin Plated Brass |
| Maximum Temperature | 221°F |
| Maximum Voltage | 1000V |
| Standards | CSA CERTIFIED, ROHS COMPLIANT, UL LISTED |
| Wire Range | 22 AWG to 18 AWG |
| Ship weight (kg) | 0.01 |
| Ship height (cm) | 10.16 |
| Ship length (cm) | 2.21 |
| Ship width (cm) | 0.64 |
| Country of Origin | US |
| Product | Model | Tab Size | Pkg. Qty. | Price | |
|---|---|---|---|---|---|
|
FDV18-250Q | 0.032" x 0.250" | 25 | €18.81 |
