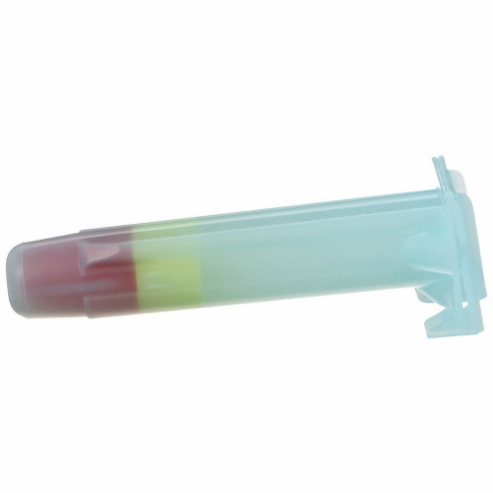

| Item | Splice Kits |
| Color | Blue, Orange, Red, Yellow , Yellow |
| Material | Polypropylene |
| Max. Temp. | 221°F |
| Max. Voltage | 600V |
| Max. Wire Size | 10 AWG |
| Min. Wire Size | 18 AWG |
| Overall Length | 4" |
| Rohs Compliant | Yes |
| Special Features | Moisture Seal |
| Temp. Range | Up To 221°F |
| Termination Style | Splice |
| Ul 94 Flammability Rating | V-2 |
| Voltage Rating | 600V |
| Wire Size | 18 AWG to 10 AWG |
| Compatible With Product Type | Appliances and Fixtures |
| Flammability Rating | V-2 |
| Includes | Tube Moisture-Resistant Grease Sealant and Performance Plus Wire Connector R/Y+ (Red and Yellow) |
| Insulation Material | Polypropylene |
| Maximum Operating Temperature | 221°F |
| Maximum Voltage | 600V |
| Maximum Wire Size | 10 AWG |
| Minimum Operating Temperature | -40°F |
| Minimum Wire Size | 18 AWG |
| Resistance Properties | Moisture Resistant, UV Resistant |
| Ship weight (kg) | 0.05 |
| Ship height (cm) | 3.05 |
| Ship length (cm) | 10.16 |
| Ship width (cm) | 6.6 |
| Country of Origin | US |
| Product | Model | Color | Material | Max. Temp. | Max. Voltage | Overall Length | Temp. Range | Voltage Rating | Wire Range | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
5300 | Black | Copper Lug, EPDM Rubber Insulation | 194 Deg F | 1,000 V | 2.1" | Up to 194 Deg F | 1000V | 16 to 12 AWG | €72.78 | RFQ
|
