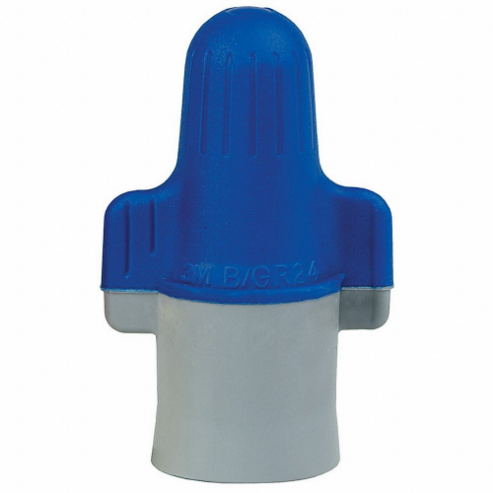

| Item | Twist On Wire Connector |
| Application | Wide Range |
| Color | Blue, Gray |
| For Conductor Material | Copper |
| Height | 19/25" |
| High Temperature Application | No |
| Length | 1.17" |
| Max. Single Wire Size | 10 AWG |
| Max. Voltage | 600V |
| Max. Wire Combination | 5 |
| Max. Wire Size | 10 AWG |
| Maximum Conductors | 6 |
| Maximum Single Wire Size | 6 AWG |
| Min. Wire Combination | 4 |
| Min. Wire Size | 14 AWG |
| Minimum Single Wire Size | 14 AWG |
| Rohs Compliant | Yes |
| Strip Length | 7/8" |
| Type | Wire |
| Ul 94 Flammability Rating | V-2 |
| Width | 1 3/25" |
| Wire Connector Style | Standard |
| Wire Type | Solid And Stranded |
| Contact Material | Steel |
| Flammability Rating | V-2 |
| Insulation Material | Polypropylene, Thermoplastic Elastomer |
| Maximum Operating Temperature | 221°F |
| Maximum Voltage | 600V |
| Maximum Wire Combination | (2) 6 AWG |
| Minimum Wire Combination | (4) 14 AWG |
| Overall Height | 1.79" |
| Overall Width | 1 3/25" |
| Special Features | Dual Color Coded, Flexible Spring Expands for Freater Wire Range and Reuse, Strong Bite for a Secure, Reliable Connection |
| Standards | CSA CERTIFIED, UL LISTED |
| Ship weight (kg) | 1.69 |
| Ship height (cm) | 4.55 |
| Ship length (cm) | 19.05 |
| Ship width (cm) | 2.84 |
| HS code | 8546900000 |
| Country of Origin | US |
