| Item | Resin Splice Kit |
| Color | Black |
| Compatible With Product Type | Power Cables |
| For Max. Cable Od | 1 14/25" |

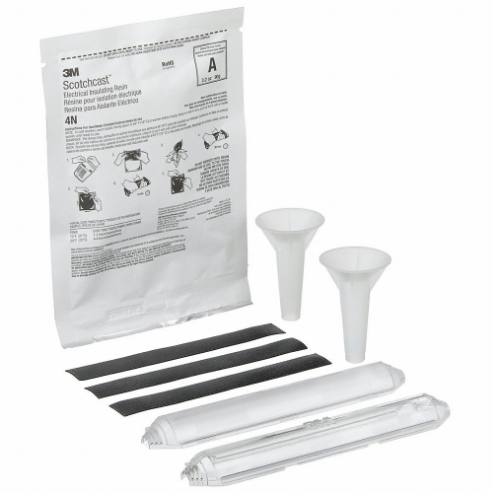

| Includes | Electrical Tape, Pouring Spout, Straight Mold Body |
| Includes Resin | Yes |
| Material | Epoxy , Resin |
| Max. Temp. | 194°F |
| Max. Voltage | 5000V |
| Max. Wire Size | 2 AWG |
| Min. Wire Size | 8 AWG |
| Overall Length | 4 1/2" |
| Rohs Compliant | Yes |
| Temp. Range | Up To 194°F |
| Tensile Strength | 4900 psi |
| Termination Style | Splice |
| Voltage Rating | 5000V |
| Body Material | Epoxy |
| For Maximum Cable Od | 1.56" |
| Maximum Operating Temperature | 194°F |
| Maximum Voltage | 10000V |
| Maximum Wire Size | 2 AWG |
| Minimum Wire Size | 8 AWG |
| Number Of Pieces | 3 |
| Resin Material | Resin 4N |
| Resistance Properties | Oil Resistant |
| Standards | UL LISTED |
| Ship weight (kg) | 0.25 |
| Ship height (cm) | 3.05 |
| Ship length (cm) | 11.43 |
| Ship width (cm) | 6.6 |
| Country of Origin | US |
| Product | Model | Overall Length | Wire Range | Price | |
|---|---|---|---|---|---|
 |
7100123110 | 11.875" | 2 to 3/0 AWG | €150.93 |
