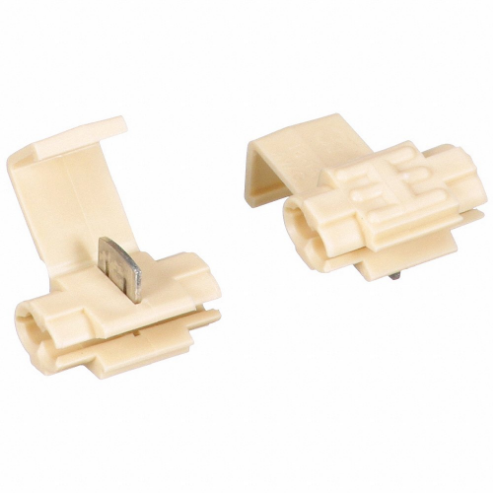

| Item | Insulation Disp. Connector |
| Color | Beige |
| Connector Type | Single U Element |
| Fill Material | No Fill |
| Flame Retardant | No |
| Insulation Material | Polypropylene |
| Material | Polypropylene |
| Max. Insulation Dia. | 0.145" |
| Max. Temp. | 194°F |
| Max. Voltage | 600V |
| Number Of Ports | 2 |
| Type | Dry Environment |
| Wire Range | 18 AWG to 14 AWG |
| Wire Type | Electrical |
| Compatible Installation Tool Model Number | E-9BM |
| Contact Finish | Tin |
| Contact Material | Brass |
| Maximum Insulation Diameter | 0.145" |
| Maximum Operating Temperature | 194°F |
| Maximum Run Conductors | 2 |
| Maximum Run Wire Insulation Diameter | 0.145" |
| Maximum Run Wire Size | 10 AWG |
| Maximum Tap Wire Insulation Diameter | 0.145" |
| Maximum Tap Wire Size | 14 AWG |
| Maximum Voltage | 32V |
| Minimum Run Wire Size | 12 AWG |
| Minimum Tap Wire Size | 18 AWG |
| Rohs Compliant | Yes |
| Run Wire Size Range | 12 AWG to 10 AWG |
| Special Features | Self Stripping |
| Standards | CSA CERTIFIED, UL LISTED |
| Tap Wire Size Range | 18 AWG to 14 AWG |
| Ship weight (kg) | 7.92 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| HS code | 8536904000 |
| Country of Origin | US |
| Product | Model | Color | Connector Type | Fill Material | Flame Retardant | Item | Material | Max. Temp. | Max. Voltage | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
7000005878 | Light Blue | Single U-Element | No Fill | Yes | Insulation Disp. Connector | Polypropylene | 221 Degrees F | 600V | 5 | €1,509.77 | |
 |
7000148820 | Red | Double U-Element | No Fill | Yes | Insulation Disp. Connector | Polypropylene | 221 Degrees F | 600V | 5 | €3,837.81 | |
 |
903-BULK | Yellow | Single U-Element | No Fill | No | Insulation Disp. Connector | Polypropylene | 221 Degrees F | 600V | 1 | €558.21 | |
 |
902 | Brown | Single U-Element | No Fill | Yes | Insulation Disp. Connector | Polypropylene | 221 Degrees F | 600V | 1 | €600.85 | |
 |
314U-BOX | Clear | Single U-Element | No Fill | Yes | Insulation Disp. Connector | Nylon | 221 Degrees F | 600V | 500 | €1,011.31 | |
|
7100177012 | Brown | Single U-Element | No Fill | Yes | Insulation Disp. Connector | Polypropylene | 221 Degrees F | 600V | 500 | €616.44 | |
 |
905-BULK | Red | Single U-Element | No Fill | No | Insulation Disp. Connector | Polypropylene | 194 Degrees F | 600V | 5 | €1,682.67 |
