| Item | Motor Lead Splice Kit |
| Bolt Length | 1 1/4" |
| Color | Black |
| Max. Cable Dia. | 0.53" to 0.88" |
| Max. Temp. | 194°F |
| Max. Voltage | 8000V |
| Overall Length | 10" |
| Standard Length | 9" to 10" |
| Wire Size | 2 kcmil to 250 kcmil |
| Body Material | EPDM Rubber |
| Compatible With Product Type | Pigtail, Shielded and Non-Shielded Cable Connections |
| Compatible With Series | Series 30000 |
| Contact Material | Copper, Ethylene Propylene, Polyethylene |
| For Conductor Material | Copper |
| For Conductor Type | Stranded Copper |
| For Wire Type | Motor Lead Cable |
| Heat Shrink Material | EPDM Rubber |

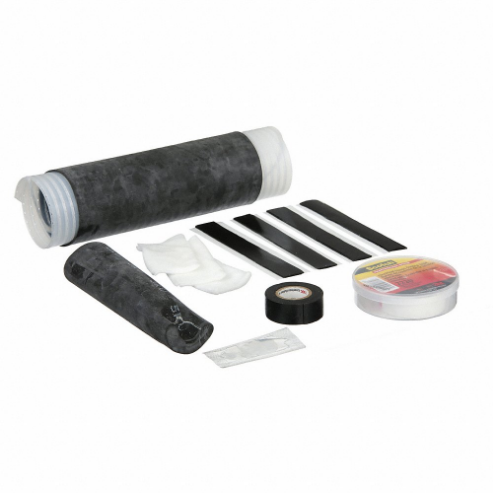

| Includes | (3) Bags of Solvent Cleaning Cloths, (3) Cold Shrink Tubes, (3) Instruction Sheets, (3) Pigtail Lug Covers, (3) Rolls Scotch Linerless Rubber Splicing Tape 130C, (3) Rolls Scotch Stress Control Tape 2200, (3) Tubes of Silicone Grease, (9) Mastic Sealing Strips |
| Insulation Coverage | Full Coverage |
| Insulation Material | EPDM Rubber |
| Material | EPDM Rubber |
| Maximum Operating Temperature | 194°F |
| Maximum Voltage | 8000V |
| Maximum Wire Size | 250 kcmil |
| Minimum Wire Size | 2 AWG |
| Number Of Pieces | 21 |
| Number Of Splices | 3 |
| Resin Material | Resin |
| Resistance Properties | Abrasion Resistant, Puncture Resistant |
| Rohs Compliant | Yes |
| Special Features | Mastic Strips Seal Moisture, Slip-On Lug Cover |
| Tensile Strength | 1400 psi |
| Termination Style | Splice |
| Wall Type | Thick |
| Ship weight (kg) | 1.82 |
| Ship height (cm) | 23.37 |
| Ship length (cm) | 25.4 |
| Ship width (cm) | 20.32 |
| HS code | 8546900000 |
| Country of Origin | US |
| Product | Model | Bolt Length | Overall Length | Wire Range | Price | |
|---|---|---|---|---|---|---|
 |
7000006041 | 1/2" | 8" | 10 to 4 AWG | €426.34 | |
 |
7000006042 | 3/4" | 9" | 4 to 1/0 AWG | €581.53 | |
 |
7000006044 | 1 1/2" | 11.5" | 4/0 to 500 kcmil | €771.22 |
