| Item | Motor Lead Splice Kit |
| Bolt Length | 3/4" |
| Color | Black |
| Max. Temp. | 194°F |
| Max. Voltage | 1000V |
| Overall Length | 9" |
| Standard Length | 8" to 9" |
| Voltage Rating | 1000V |
| Wire Size | 4 AWG to 1/0 AWG |
| Body Material | EPDM Rubber |
| Compatible With Product Type | Inline, 1-Hole Lug Connections |
| Compatible With Series | Series 30000 |
| Contact Material | Copper |
| For Wire Type | Motor Lead Cable |
| Heat Shrink Material | EPDM Rubber |
| Includes | Inline Splice Cover, Instruction Sheet, Tubes of Silicone Grease, (3) Adapter Sleeves |
| Insulation Coverage | Full Coverage |
| Insulation Material | EPDM Rubber |
| Material | EPDM Rubber |
| Maximum Conductors | 1 |
| Maximum Operating Temperature | 194°F |
| Maximum Voltage | 1000V |
| Maximum Wire Size | 1/0 AWG |
| Minimum Wire Size | 4 AWG |
| Number Of Pieces | 5 |
| Number Of Splices | 3 |
| Resin Material | Resin |
| Resistance Properties | Abrasion Resistant, Puncture Resistant |
| Rohs Compliant | Yes |
| Special Features | Mastic Strips Seal Moisture, Slip-On Lug Cover |
| Standards | CSA APPROVED |
| Tensile Strength | 1400 psi |
| Termination Style | Splice |
| Wall Type | Thick |
| Ship weight (kg) | 0.5 |
| Ship height (cm) | 10.92 |
| Ship length (cm) | 22.86 |
| Ship width (cm) | 13.72 |
| HS code | 8546900000 |
| Country of Origin | US |
| Model | Bolt Length | Item | Material | Max. Temp. | Max. Voltage | Overall Length | Temp. Range | Voltage Rating | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 7000132310 | 1" | Motor Lead Splice Kit | EPDM Rubber,Resin | 194 Degrees F | 1000V | 9" | 194 Degrees F and An Emergency Overload Rating of 266 Degrees C | 1000 | €200.81 | |
| 7000148830 | 1 1/4" | Motor Lead Splice Kit | EPDM Rubber,Resin | 194 Degrees F | 1000V | 12" | 194 Degrees F and An Emergency Overload Rating of 266 Degrees C | 1000 | €298.90 | |

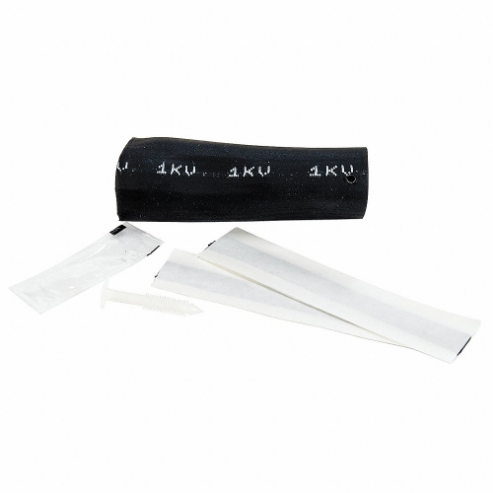

| 7100017508 | - | Resin Splice Kit | Resin with Plastic EPDM Rubber Mold | 194 Deg F | 1,000 V | 4" | Up to 194 Deg F | 1000V | €146.85 |
