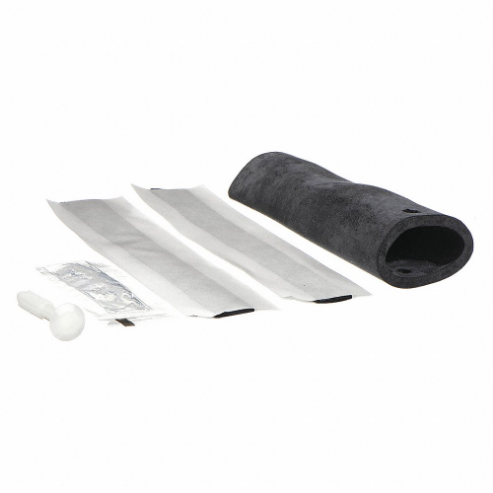

| Item | Splice Kits |
| Color | Black |
| Max. Temp. | 194°F |
| Max. Voltage | 1000V |
| Overall Length | 4 1/5" |
| Temp. Range | Up To 194°F |
| Voltage Rating | 1000V |
| Wire Size | 4 AWG to 1/0 AWG |
| Body Material | EPDM Rubber |
| Compatible With Product Type | Pigtail, 1-Hole Lug Connections |
| Compatible With Series | Series 30000 |
| Contact Material | Copper |
| For Wire Type | Motor Lead Cable |
| Heat Shrink Material | EPDM Rubber |
| Includes | Instruction Sheet, (3) Locking Pins, (3) Mastic Sealing Strips, (3) Pigtail Lug Covers, (3) Tubes of Silicone Grease |
| Insulation Coverage | Full Coverage |
| Insulation Material | EPDM Rubber |
| Material | EPDM Rubber |
| Maximum Conductors | 1 |
| Maximum Operating Temperature | 194°F |
| Maximum Voltage | 1000V |
| Maximum Wire Size | 1/0 AWG |
| Minimum Wire Size | 4 AWG |
| Number Of Pieces | 12 |
| Number Of Splices | 3 |
| Resistance Properties | Abrasion Resistant, Puncture Resistant |
| Rohs Compliant | Yes |
| Special Features | Mastic Strips Seal Moisture, Slip-On Lug Cover |
| Standards | CSA APPROVED |
| Tensile Strength | 1400 psi |
| Termination Style | Splice |
| Wall Type | Thick |
| Ship weight (kg) | 0.3 |
| Ship height (cm) | 3.05 |
| Ship length (cm) | 10.67 |
| Ship width (cm) | 6.6 |
| Country of Origin | US |
| Product | Model | Overall Length | Wire Range | Price | |
|---|---|---|---|---|---|
 |
7000005805 | 4" | 12 to 4 AWG | €104.79 | |
 |
7000005807 | 5.3" | 2 AWG to 250 kcmil | €188.40 | |
|
7000005808 | 6.7" | 4/0 AWG to 500 kcmil | €214.73 |
