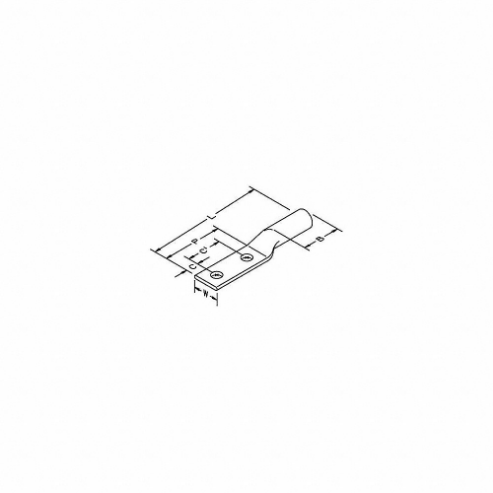

| Item | Copper 2-Hole L-Barrel Lug |
| Color Code | Purple |
| Connector Type | Straight Barrel |
| Hole Center To End | 0.63" |
| Hole To Hole Center | 1.75" |
| Length | 4.98" |
| Material | Copper |
| Peep Hole | No |
| Plate Material | Tin |
| Stud Size | 1/2" |
| Type | Standard |
| Width | 3/4" |
| Barrel Id | 0.39" |
| Barrel Od | 0.51" |
| Barrel Size | Long |
| Barrel Style | Chamfered, Seamless |
| Contact Finish | Tin |
| Die Code | 12, 99 |
| For Conductor Material | Copper |
| For Stud Size | 1/2" |
| For Wire Size | 1/0 AWG |
| For Wire Type | Stranded |
| Hole Center To Center | 1 3/4" |
| Inspection Hole | No |
| Maximum Voltage | 35 kV AC |
| Maximum Wire Size | 1/0 AWG |
| Number Of Holes | 2 |
| Overall Length | 4.98" |
| Overall Width | 3/4" |
| Rohs Compliant | Yes |
| Seam Style | Seamless |
| Special Features | High-Conductivity Construction |
| Termination Style | Crimp |
| Tongue Angle | Straight |
| Tongue Length | 3" |
| Tongue Style | Standard |
| Tongue Width | 0.75" |
| Ship weight (kg) | 0.59 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 12.65 |
| Ship width (cm) | 1.91 |
| HS code | 8535908040 |
| Country of Origin | CL |
| Product | Model | Cable Size | Cable Size Code | Color Code | Die Code | Length | Width | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
|
31129 | 1 AWG | 1 AWG | Purple | 11 | 4.85" | 0.69" | 10 | €215.06 | |
|
31137 | 2/0 AWG | 2/0 AWG | Purple | 13, 100 | 5.03" | 0.81" | 10 | €246.45 | |
 |
31125 | 2 AWG | 2 AWG | Purple | 10 | 4.85" | 0.63" | 25 | €485.10 | |
 |
31122 | 4 AWG | 4 AWG | Gray | 8, 12 | 4.19" | 0.66" | 25 | €523.91 | |
 |
31141 | 3/0 AWG | 3/0 AWG | Purple | 14, 101 | 5.13" | 0.91" | 10 | €253.39 |
