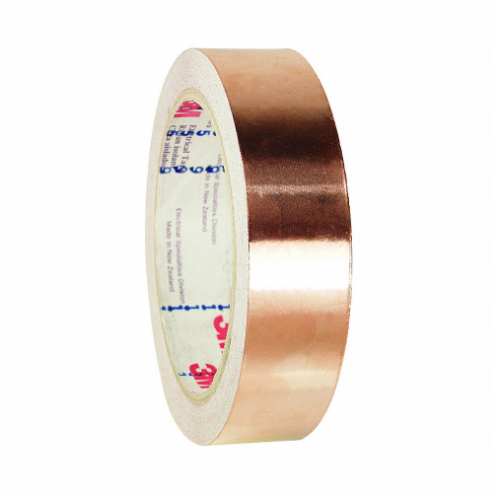

3M 7000132697 Conductive Electrical Tape, Gen Purpose Foil, 1182, 1 Inch x 54 Ft., 9 PK
€1,732.17 /pack
Request a Quote
Payment
Payment
| Item | Shielding Foil Tape |
| Adhesive Properties | Conductive |
| Color | Copper |
| Duct Tape Adhesive | Acrylic |
| Liner Included | Yes |
| Material | Copper Foil |
| Number Of Adhesive Sides | 1 |
| Product Form | Continuous Roll |
| Shape | Continuous Roll |
| Tape Backing Construction | Foil |
| Tape Type | Foil |
| Adhesion To Steel | 35 oz./in. |
| Breaking Strength | 25 lbs./in. |
| Elongation | 5% |
| Imperial Tape Length | 54 ft. |
| Imperial Tape Width | 1" |
| Maximum Tape Performance Temperature | 265°F |
| Metric Tape Length | 16.5m |
| Metric Tape Width | 25.4 mm |
| Minimum Tape Performance Temperature | -40°F |
| Series | 1182 Series |
| Shielding Effectiveness | Good (70 dB to 85dB) |
| Specifications Met | EU, RoHS, UL Listed |
| Standards | ROHS 2011/65/EU, UL LISTED |
| Tape Adhesive Format | Double-Sided |
| Tape Adhesive Material | Acrylic |
| Tape Backing Material | Copper |
| Tape Color | Copper |
| Tape Properties | Bonding, EMI Shielding, Flame Retardant |
| Tape Resistance Properties | Low Thermal Resistance |
| Tape Sub-type | General Purpose Foil |
| Tape Tensile Strength | 25 lbs./in. |
| Tape Thickness | 3.5 mil. |
| Voltage Rating | 600V |
| Ship weight (kg) | 3.15 |
| Country of Origin | TW |
| Product | Model | Pkg. Qty. | Price | |
|---|---|---|---|---|
 |
7100081931 | 18 | €1,683.86 | RFQ
|
