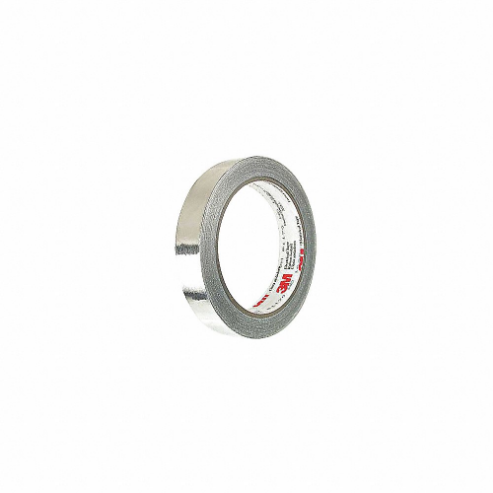

| Item | Shielding Foil Tape |
| Color | Silver |
| Adhesion To Steel | 35 oz./in. |
| Adhesive Properties | Conductive |
| Elongation | 5% |
| Imperial Tape Length | 54 ft. |
| Imperial Tape Width | 3/4" |
| Liner Included | Yes |
| Liner Material | Paper |
| Maximum Tape Performance Temperature | 266°F |
| Metric Tape Length | 16.5m |
| Metric Tape Width | 19.1 mm |
| Minimum Tape Performance Temperature | -40°F |
| Product Form | Continuous Roll |
| Series | 1170 Series |
| Shielding Effectiveness | Excellent (Over 85dB) |
| Specifications Met | EU, RoHS, UL Listed |
| Standards | ROHS 2011/65/EU, UL LISTED |
| Tape Adhesive Format | Single-Sided |
| Tape Adhesive Material | Acrylic |
| Tape Backing Construction | Foil |
| Tape Backing Material | Aluminum |
| Tape Color | Silver |
| Tape Properties | EMI Shielding, Flame Retardant, Static Dissipative |
| Tape Resistance Properties | Electrical-Resistant, Flame-Resistant |
| Tape Sub-type | General Purpose Foil |
| Tape Tensile Strength | 20 lbs./in. |
| Tape Thickness | 3.2 mil. |
| Tape Type | Foil |
| Voltage Rating | 600V |
| Ship weight (kg) | 1.58 |
| Country of Origin | TW |
| Product | Model | Item | Pkg. Qty. | Price | |
|---|---|---|---|---|---|
|
7000132167 | Shielding Foil Tape | 9 | €1,470.92 | RFQ
|
 |
7000132702 | Electrical Tape | 5 | €1,835.52 |
