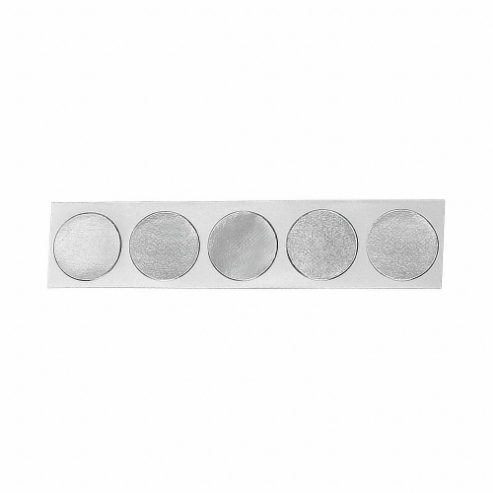

| Item | Shielding Foil Tape |
| Adhesive | Conductive Acrylic |
| Adhesive Type | Conductive |
| Color | Silver |
| Diameter | 1 1/2" |
| Length | 36 yd. |
| Material | Aluminum |
| Performance Temp. | -40°C to +130°C |
| Shape | Circular |
| Thickness | 4 mil. |
| Width | 1 1/2" |
| Adhesion To Steel | 36 oz./in. |
| Adhesive Properties | Conductive |
| Breaking Strength | 16 lbs./in. |
| Elongation | 5% |
| Imperial Tape Width | 1 1/2" |
| Liner Included | Yes |
| Liner Material | Aluminum |
| Maximum Tape Performance Temperature | 265°F |
| Metric Tape Width | 38.1 mm |
| Minimum Tape Performance Temperature | -40°F |
| Product Form | Discs |
| Series | 1120 Series |
| Shielding Effectiveness | Fair (50 dB to 70dB) |
| Specifications Met | EU, RoHS, UL Listed |
| Standards | ROHS 2011/65/EU, UL LISTED |
| Tape Adhesive Format | Single-Sided |
| Tape Adhesive Material | Acrylic |
| Tape Backing Construction | Foil |
| Tape Backing Material | Aluminum |
| Tape Color | Silver |
| Tape Conformability | High Conformability |
| Tape Properties | EMI Shielding, Flame Retardant |
| Tape Resistance Properties | Oxidation-Resistant, Solvent-Resistant |
| Tape Sub-type | General Purpose Foil |
| Tape Tensile Strength | 16 lbs./in. |
| Tape Thickness | 4 mil. |
| Tape Type | Foil |
| Voltage Rating | 600V |
| Ship weight (kg) | 0.34 |
| Ship height (cm) | 5.08 |
| Ship length (cm) | 8.26 |
| Ship width (cm) | 8.26 |
| HS code | 7607196000 |
| Country of Origin | TW |
| Model | Adhesion Strength | Diameter | Length | Material | Shape | Tensile Strength | Thickness | Width | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 1120 | 36 oz./in. | - | 6yd. | Aluminum | Continuous Roll | 16 lb./in. | 4mil. | 1/2" | 1 | €17.74 | |
| 1120 | 36 oz./in. | - | 6yd. | Aluminum | Continuous Roll | 16 lb./in. | 4mil. | 11.5" | 1 | €312.02 | |
| 1120 | 36 oz./in. | - | 12" | Aluminum | Rectangle | 16 lb./in. | 4mil. | 11.5" | 6 | €135.09 | |
| 1120 | 36 oz./in. | - | 6yd. | Aluminum | Continuous Roll | 16 lb./in. | 4mil. | 1" | 1 | €32.15 | |
| 1120 | 36 oz./in. | - | 36" | Aluminum | Continuous Roll | 16 lb./in. | 4mil. | 23" | 1 | €128.40 | |
| 1120 | 36 oz./in. | - | 6yd. | Aluminum | Continuous Roll | 16 lb./in. | 4mil. | 2" | 1 | €58.32 | |
| 1120 | 36 oz./in. | - | 6yd. | Aluminum | Continuous Roll | 16 lb./in. | 4mil. | 3/4" | 1 | €23.75 |
