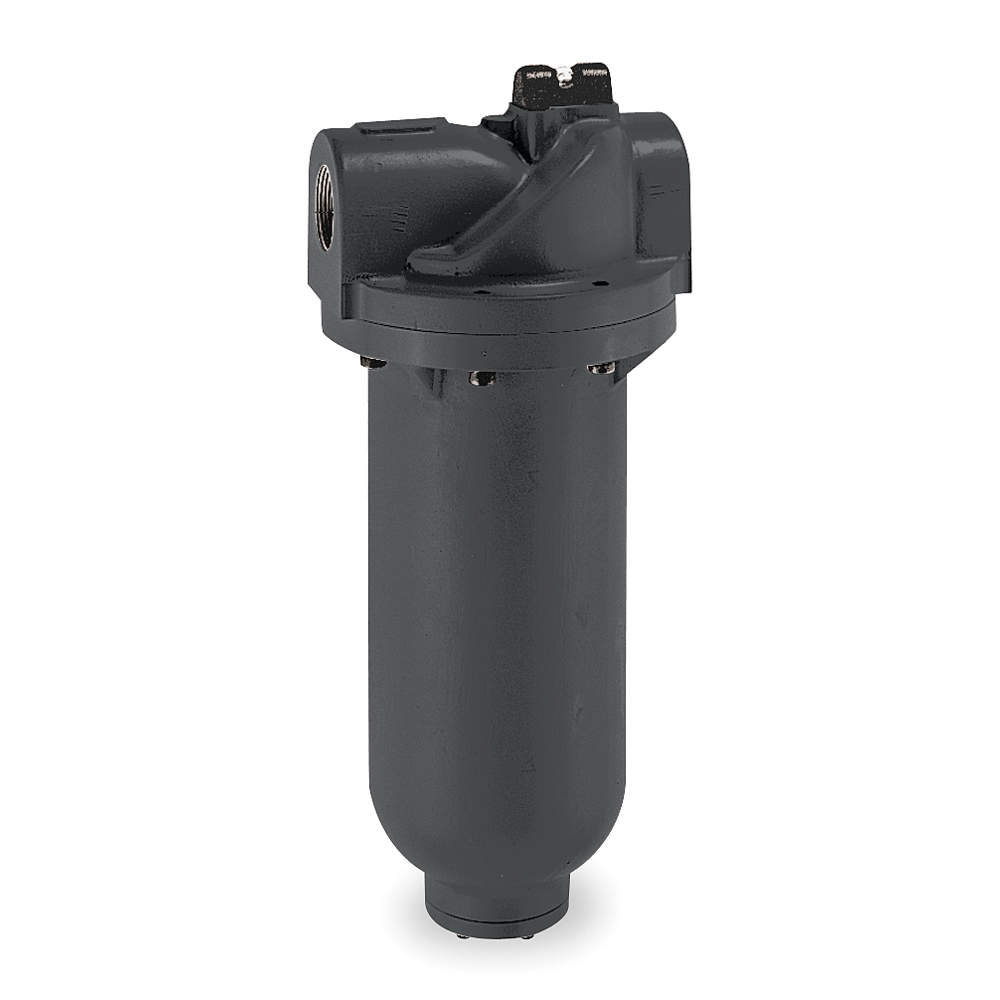

| Item | Pneumatic Oil Filter |
| Bowl Material | Metal |
| Bowl Size | 26 oz. |
| Drain Included | Yes |
| Drain Port Size | 3/4" |
| Drain Type | Manual |
| Filter Bowl Guard Included | Yes |
| Filter Bowl Material | Metal |
| Filter Element Material | Borosilicate Cloth |
| Filter Rating | 0.5 µm |
| Filter Type | Coalescing |
| For Fluid Type | Oil |
| For Removal Of | Oil |
| For Substance Type | Oil Aerosol |
| Gauge Included | No |
| Housing Material | Zinc |
| Includes | Differential Pressure Indicator |
| Max. Flow | 140 CFM |
| Max. Pressure | 200 psi |
| Max. Temp. | 150°F |
| Number Of Air Inlets | 1 |
| Number Of Air Outlets | 1 |
| Overall Height | 10 1/2" |
| Overall Width | 4 4/5" |
| Seal Material | Fluorocarbon |
| Size - Air Treatment | Jumbo |
| System Location | Air Line |
| Air Inlet Size | 3/4" |
| Air Inlet Type | NPT |
| Air Outlet Size | 3/4" |
| Air Outlet Type | NPT |
| Body Material | Zinc |
| Connection Style | Air Line |
| Filter Bowl Capacity | 2 oz. |
| Iso Class | Class 2 |
| Maximum Flow Rate | 173 CFM |
| Maximum Operating Pressure | 200 psi |
| Maximum Operating Temperature | 150°F |
| Minimum Operating Temperature | 32°F |
| Overall Depth | 4 5/8" |
| Pressure Drop | 3 psid |
| Series | M30 Series |
| Weight | 5.4 lbs. |
| Ship weight (kg) | 2.68 |
| Ship height (cm) | 26.67 |
| Ship length (cm) | 11.75 |
| Ship width (cm) | 12.22 |
| HS code | 8421290065 |
| Country of Origin | US |
