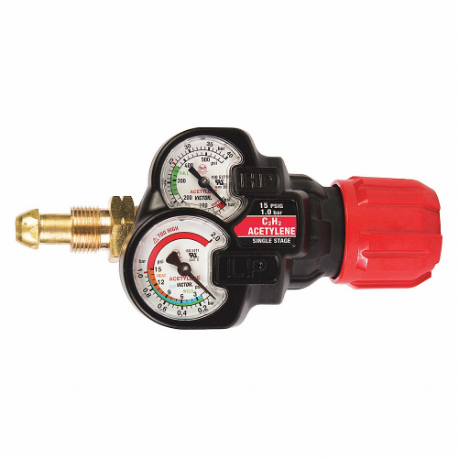

| Item | Gas Regulator |
| Application | Industrial And General Fabrication, Light Fabrication, Repair And Maintenance, Structural Steel Fabrication |
| Body Dia. | 3 3/5" |
| Body Material | Brass |
| Cga Number | CGA 510 |
| Compatible Gas Type | Acetylene |
| Control Type | Knob |
| Delivery Pressure Range | 2 psi to 15 psi |
| Diaphragm Material | Neoprene |
| Duty Rating | Heavy Duty |
| Features | Consistent Pressure And Flow Delivery, Fully Enclosed, Highly Visible Modular Gauges For More Clarity With Robust Metal Gauge Guard, High Resistance To Oxygen Related Fires And Slam Knob Absorbs Impact In The Event Of Cylinder Fall, Robust Seat Gives Optimum Performance |
| For Gas Type | Acetylene |
| Gauge Diameter | 2" |
| Gauge Size | 2" |
| Height | 4" |
| Inlet Connection Gender | Female |
| Inlet Thread Direction | Left Hand |
| Max. Inlet Pressure | 3000 psig |
| Max. Outlet Pressure | 15 psig |
| Maximum Gauge Outlet Pressure | 3000 psig |
| Min. Outlet Pressure | 0 psig |
| Mounting Type | Cylinder |
| Number Of Stages | 1 |
| Outlet Connection Gender | Male |
| Outlet Connection Size | 9/16"-18 |
| Outlet Connection Type | UNF |
| Outlet Thread Direction | Left Hand |
| Outlet Thread Gender | Male |
| Overall Depth | 4" |
| Regulator Supply Type | Cylinder |
| Width | 6" |
| Body Diameter | 3.6" |
| Inlet Connection | CGA 510 |
| Inlet Connection Size | 0.965"-14 |
| Inlet Connection Type | NGO |
| Inlet Pressure (maximum) | 3000 psig |
| Outlet Connection | 9/16"-18 M LH |
| Outlet Pressure (maximum) | 15 psig |
| Outlet Pressure (minimum) | 0 psig |
| Overall Height | 4" |
| Overall Width | 6" |
| Regulator Series | Edge 2.0 ESS32 Series |
| Standards | ASTM G175, CGA E-4, ETL LISTED, UL252 |
| Ship weight (kg) | 1.49 |
| Ship height (cm) | 10.16 |
| Ship length (cm) | 10.16 |
| Ship width (cm) | 15.24 |
| Country of Origin | MX |
