REELCRAFT HD78065 OMP Hose Reel, Inner Diameter 1/2 Inch, 3000 Psi, Hose Length 65 Feet | BT7FZM

REELCRAFT HD78065 OMP Hose Reel, Inner Diameter 1/2 Inch, 3000 Psi, Hose Length 65 Feet

Item: BT7FZMModel: HD78065 OMPCross Ref: 48ZW97
In Stock

Get it by Thursday, Jun 19

€913.03 /unit
Add To Cart
Request a Quote

Payment

Product Specifications:

ItemHose Reel
HoseYes
Hose Inside Dia.1/2"
Hose Length65 ft.
Hose Outside Dia.0.82"
Max. Pressure3000 psi
Max. Temp.210°F
MountingCeiling, Floor, Wall
Pressure3000 psi
Speed Limited RetractionNo
Swivel MaterialSteel
Weight78 lbs.
Base Motion TypeStationary
Bearing ConstructionBall
Corrosion-resistantYes
Drive TypeSpring Return
EnclosedNo
Fasteners IncludedNo
FeaturesHeavy Duty and High Capacity Compact Reel
Fitting GenderMale x Male
Fitting Size1/2" x 1/2"
Fitting TypeNPT x NPT
For Dual HoseNo
Hose Capacity65 ft. (1/2" I.D.)
Hose ColorRed
Hose Cover MaterialSynthetic Rubber
Hose End Configuration1/2" MNPT
Hose Fitting A GenderMale
Hose Fitting A MaterialSteel
Hose Fitting A Size1/2"
Hose Fitting A TypeNPT
Hose Fitting B GenderMale
Hose Fitting B MaterialSteel
Hose Fitting B Size1/2"
Hose Fitting B TypeNPT
Hose Reel Primary ApplicationOil
Hose Reel TypeCeiling, Floor, Vehicle, Wall Mount Hose Reel
Hose Tube MaterialSynthetic Rubber
IncludesHose, Bumper
Includes HoseYes
Includes Hose StopYes
Includes Leader HoseNo
Latch TypeSpring Loaded
Maximum Operating Pressure3000 psi
Maximum Operating Temperature210°F
Minimum Operating Temperature32°F
Mount Base Height8 61/64"
Mount Base Width4 61/64"
Mount Hole Diameter1/2"
Mounting Hole Center To Center Height7 13/16"
Mounting Hole Center To Center Width3 7/8"
Number Of Guide Arms1
Number Of Mount Holes4
Overall Dimensions19 3/4" L x 8 1/4" W x 20 1/4" H
Overall Height20 1/4"
Overall Length19 3/4"
Overall Width8 1/4"
Pedestal TypeSingle Pedestal
Reel ColorRed
Reel Diameter9"
Reel FinishPowder Coated
Reel MaterialCarbon Steel
Reel Width8 1/4"
Spiral Hose GuardNo
Swivel Inlet GenderFemale
Swivel Inlet Size1/2"
Swivel Inlet Thread Size1/2"-14
Swivel Inlet TypeNPT
Swivel Outlet GenderMale
Swivel Outlet Size1/2"
Swivel Outlet Thread Size1/2"-14
Swivel Outlet TypeNPT
Twin Hose CompatibleNo

Shipping Info:

Ship weight (kg) 35.1
Ship height (cm)56.52
Ship length (cm)53.98
Ship width (cm)34.29

Product Details:

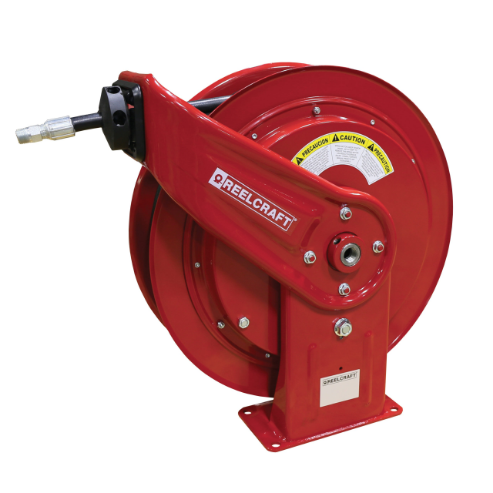

,Reelcraft’s Series HD70000 hose reels incorporate a heavy-duty base design, all-steel construction and a baked-on powder coat finish to produce a rugged, corrosion-resistant product. A newly redesigned latching mechanism provides longer service life for the latch components. The one-piece guide roller design and stainless steel pins offer greater strength and easier serviceability. The high quality, die-cast aluminum hub, and two sealed ball bearings produce a smoother spool rotation and easier operation., , ,Compact design – Reels are 25% smaller than our heavy-duty Series 80000 reels., ,Guide rollers – The one-piece design and stainless steel pins offer greater strength and easier serviceability., ,Ease of operation – The high quality, die-cast aluminum hub, and two sealed ball bearings produce a smoother spool rotation and easier operation., ,Made in the USA, , ,*Reel is shipped in the top wind position. The reel image is shown in the side wind position.,
