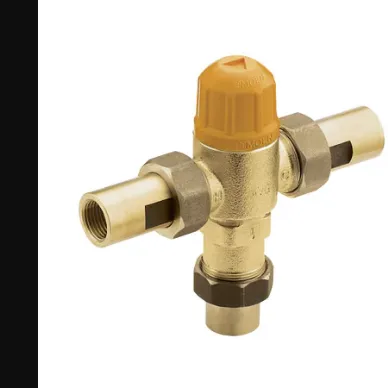

| Item | Thermostatic Mixing Valve |
| Body Material | Brass |
| Cold Inlet Temp. | +40°F to +85°F |
| Flow Rate | 12 GPM |
| For Use With | Lavatory Faucets Or Roman Tubs |
| Hot Inlet Temp. | +120°F to +180°F |
| Includes | Check Stop, Temperature Gauge |
| Inlet Size | 1/2" |
| Inlet Type | Compression |
| Max. Pressure | 125 psi |
| Mfr. Series | Accessories & Replacement Valves Series |
| Outlet Size | 1/2" |
| Outlet Type | Compression |
| Overall Height | 5" |
| Overall Width | 5" |
| Temp. Range | +39°F to +180°F |
| Connection Type | Compression x Compression |
| Flow Coefficient (cv) | 45 |
| Includes Temperature Gauge | Temperature Gauge Included |
| Inlet (cold) Temperature Range | 39°F to 80°F |
| Inlet (hot) Temperature Range | 120°F to 180°F |
| Inlet Connection Size | 1/2" |
| Max. Operating Pressure | 125 psi |
| Outlet Connection Size | 1/2" |
| Outlet Temperature Range | 39°F to 180°F |
| Standards | ASSE 1070, CSA B125.3 |
| Valve Type | Thermostatic |
| Ship weight (kg) | 1.35 |
| Country of Origin | CN |
