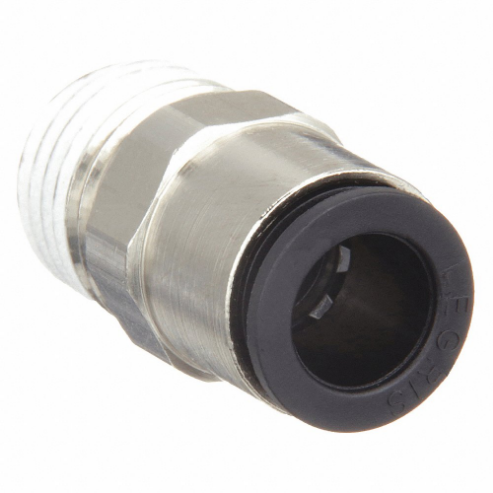

| Item | Male Connector |
| Application | Air, Cutting Fluids, Inert Gases, Vacuum |
| Color | Black |
| Compatible Tube Hardness | 95 Shore A |
| Compatible Tube Material | Fluoropolymer, Nylon, Polyethylene, Polyurethane, Semi-Rigid Nylon |
| Fitting Material | Nylon |
| Fitting Side A Connection Type | Push-to-Connect |
| Fitting Side A Tube Outer Diameter | 5/16" |
| Fitting Side B Connection Type | MNPT |
| Fitting Side B Pipe Size | 1/8" |
| Fitting Thread Size | 1/8" |
| Includes Pre-applied Thread Sealant | Yes |
| Maximum Operating Pressure | 290 psi |
| Maximum Operating Temperature | 175°F |
| Minimum Operating Temperature | 4°F |
| Overall Length | 25/32" |
| Release Type | Button |
| Resistance Properties | Chemical Resistant, Corrosion Resistant |
| Specific Fitting Shape | Straight Adapter |
| Standards | 2011/65/EC, DI: 1907/2006 (REACH), DI: 2002/95/EC (ROHS), DI: 97/23/EC (PED), ISO 14743 |
| System Of Measurement | Imperial |
| Vacuum Rating | 28 in. hg |
| Ship weight (kg) | 0.12 |
| Ship height (cm) | 6.35 |
| Ship length (cm) | 6.35 |
| Ship width (cm) | 1.27 |
| Country of Origin | MX |
| Product | Model | Basic Material | Body Material | Connection Type | Hex Size | Pipe Size | Temp. Range | Tube Size | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
3101 04 09 | - | - | - | - | - | - | - | 10 | €99.34 | |
 |
3101 04 10 | Metal | Nickel Plated Brass | Tube x MNPT | 13mm | 1/8" | -4 Degrees to 175 Degrees F | 4mm | 10 | €91.90 | |
|
3101 04 13 | - | - | - | - | - | - | - | 10 | €126.00 | |
 |
3101 04 19 | - | - | - | - | - | - | - | 10 | €89.41 | |
|
3101 06 10 | - | - | - | - | - | - | - | 10 | €93.12 | |
|
3101 06 19 | - | - | - | - | - | - | - | 10 | €141.14 | |
 |
3101 06 21 | - | - | - | - | - | - | - | 10 | €133.93 |
