LEGRAND L520CGCM Connector 125v 20a L5-20r 2p 3w | AB2WZJ 1PGL8

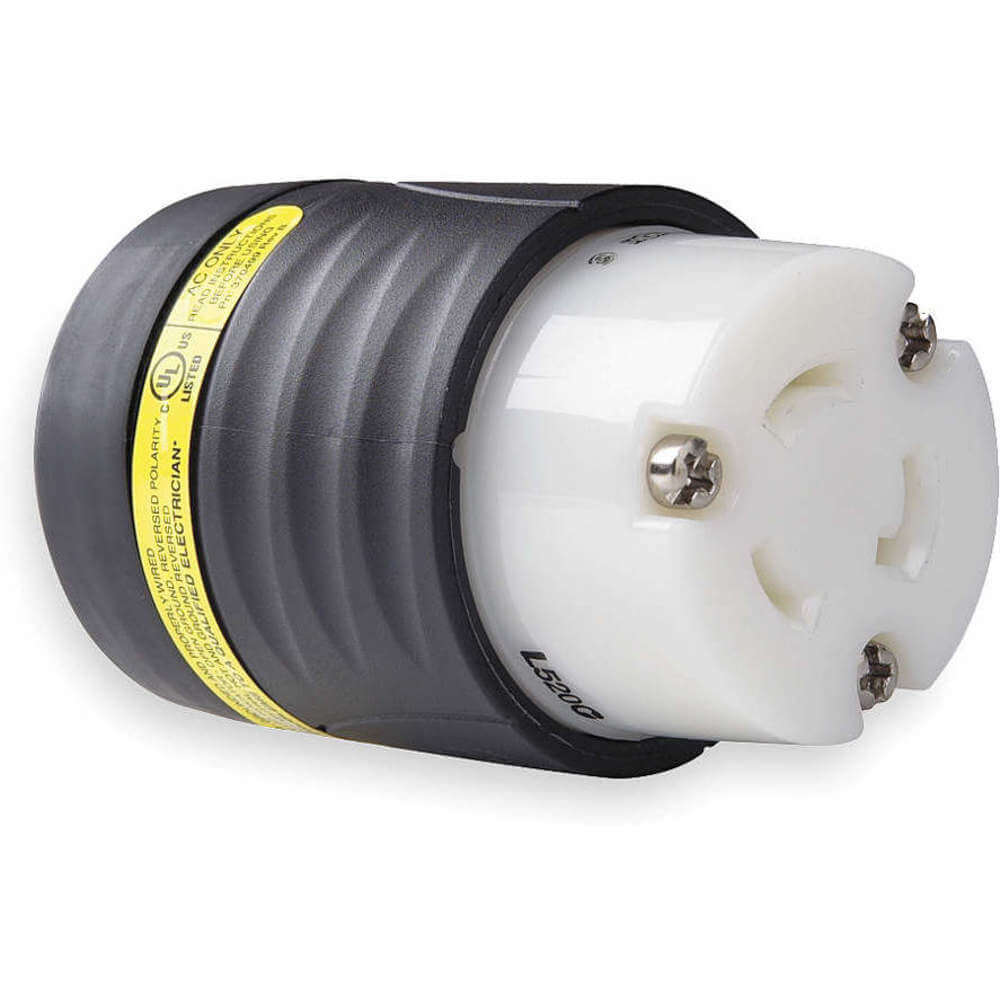

LEGRAND L520CGCM Connector 125v 20a L5-20r 2p 3w

Item: AB2WZJModel: L520CGCMCross Ref: 1PGL8
In Stock

Get it by Friday, Jun 20

€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.

€91.98 /unit
Add To Cart
Request a Quote

Payment

Product Specifications:

ItemGround Continuity Monitoring Connector
Amps20A
AntimicrobialNo
Cord Size0.385" to 1.15"
GradeFederal
Ip RatingNot Rated
MaterialNylon
Nema ConfigurationNEMA L5-20R
Number Of Poles2
Number Of Wires3
Phase1
TypeNon Shrouded
Voltage125V AC
Wiring TypeStandard
Connection OrientationStraight
Contact MaterialBrass
Current Rating20A
For Maximum Cable Diameter0.69"
For Minimum Cable Diameter0.385"
GroundingGrounded
Horsepower Rating1 hp
Housing ColorBlack, White
Housing MaterialNylon
MarketIndustrial
Maximum Operating Temperature75°C
Maximum Wire Size10 AWG
Midget LockingNo
Minimum Operating Temperature-40°C
Minimum Wire Size18 AWG
Nema Receptacle ConfigurationL5-20R
Outside Diameter1.516"
Overall Length2.791"
Resistance PropertiesChemical Resistant, Impact Resistant
ShroudedNo
StandardsCULUS LISTED, UL LISTED
Ul 94 Flammability RatingV-2
Voltage Rating125V AC
Wiring StyleStandard

Shipping Info:

Ship weight (kg) 0.17
Ship height (cm)12.7
Ship length (cm)30.73
Ship width (cm)12.7
HS code8536694020
Country of OriginMX

Product Details:

    • Sub-Brand: PASS AND SEYMOUR

Product Variants

ProductModelAmpsCord SizeNema ConfigurationNumber Of PolesNumber Of WiresVoltagePrice
LEGRAND L630CGCM Connector 250v 30a L6-30r 2p 3w | AB2WZK 1PGL9 L630CGCM300.385 to 1.15"L6-30R23250 VAC€135.07
LEGRAND PSL715CGCM Connector 277v 15a L7-15r 2p 3w | AB2WZL 1PGN1 PSL715CGCM150.23 to 0.72"L7-15R23277 VAC€94.02
LEGRAND L1420CGCM Connector 125/250v 20a L14-20r 3p 4w | AB2WZM 1PGN2 L1420CGCM200.385 to 1.15"L14-20R34125/250 VAC€141.35
LEGRAND L1430CGCM Connector 125/250v 30a L14-30r 3p 4w | AB2WZN 1PGN3 L1430CGCM300.385 to 1.15"L14-30R34125/250 VAC€244.25
