LEESON LM15674 AAF4B20T61Y General Purpose Motor 50-60 Hertz | AJ2VLD AAF4B20T61Y

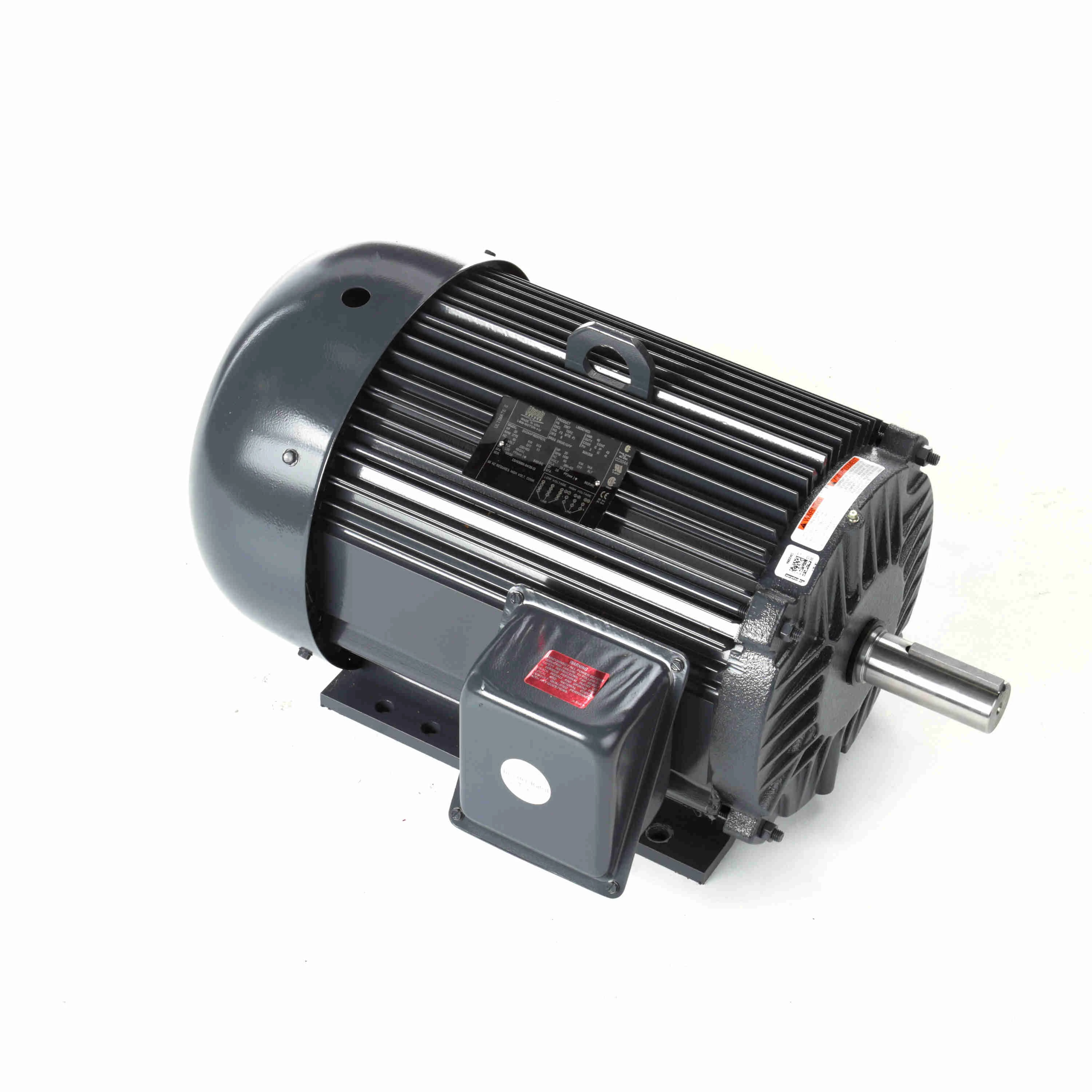

LEESON LM15674 AAF4B20T61Y General Purpose Motor, 20 HP, 3 Phase, 60/50 Hz, 230/460 and 380-415V, 1800 and 1500 RPM

Item: AJ2VLDModel: LM15674Cross Ref: AAF4B20T61Y
In Stock

Get it by Thursday, Jun 19

€2,761.68 /unit
Add To Cart
Request a Quote

Payment

Product Specifications:

ItemGeneral Purpose Motor
Ambient Temp.40°C
CodeG
Duty CycleContinuous
Frame256T
Frequency50/60 Hz
Full Load Amps48/24.1A
Hp20 hp
Insulation ClassClass F
Motor Enclosure DesignTotally Enclosed Fan Cooled
Motor Shaft RotationReversible
Motor TypeSquirrel Cage Induction Run
Mounting TypeRigid Base
Nameplate Rpm1800/1500 RPM
Nema DesignB, G
Output Kw14.9 kW
PackagingB
Phase3
Power Factor84, 86
Service Factor1, 1.25
TypeTFL
Voltage230/460V AC

Shipping Info:

Ship weight (kg) 132.75
Ship height (cm)45.72
Ship length (cm)79.38
Ship width (cm)56.52
Country of OriginUS

Product Details:

    • Bearing OPE: 208
    • CC Number: CC004A
    • Bearing PE: 309
    • Nameplate: 92117-A-X-BCDLM-B-A-X
    • Winding: K2564164
    • GROUP: 1
    • Paint: VERIFY
    • S. F Amps: 60 / 30
    • Eff 100%: 93 / 91.7
