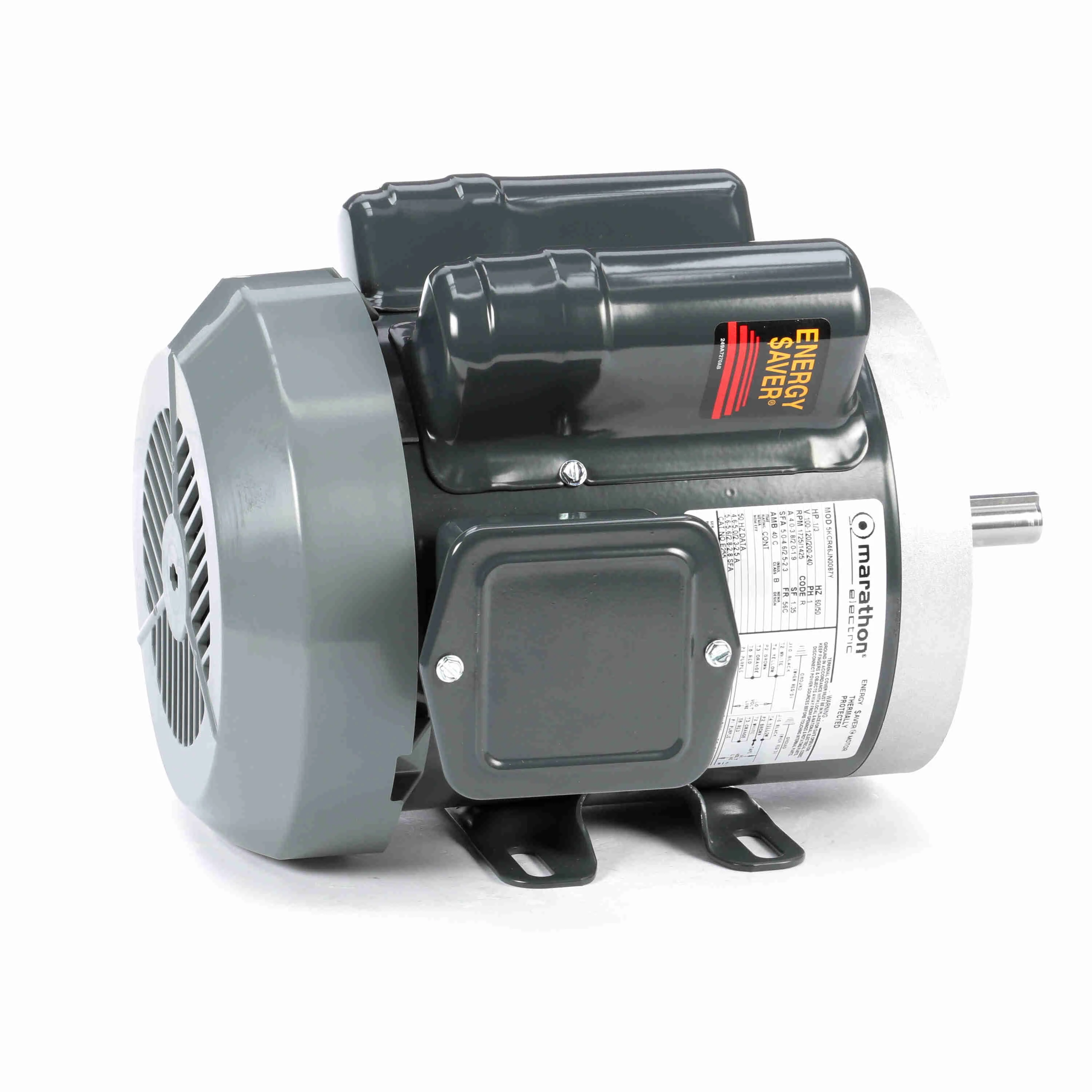

MARATHON MOTORS 5KCR46JN0087Y General Purpose Motor Carbon Steel Tefc 1/3 Hp 1725/1425 Rpm 56c | AA9ZKL 1K124 / E255

LEESON 5KCR46JN0087Y E255 General Purpose Motor, 0.33 HP, 1 Phase, 60 Hz, 100-120/200-240V, 1800 RPM

Item: AA9ZKLModel: 5KCR46JN0087YCross Ref: 1K124 / E255
In Stock

Get it by Friday, Jun 20

€718.60 /unit
Add To Cart
Request a Quote

Payment

Product Specifications:

ItemGeneral Purpose Motor
Ambient Temp.40°C
Base TypeRigid Base
Bearing TypeBall
Duty CycleContinuous
Efficiency70.2%
Frame56C
Frame MaterialSteel
Frequency50/60 Hz , 60 Hz
Full Load Amps3.8-4/1.9-2A
Hp1/3 hp
Insulation ClassClass B
Length Less Shaft9 15/16"
Max. Ambient Temp.104°F
Motor ApplicationGeneral Application
Motor Enclosure DesignTotally Enclosed Fan Cooled
Motor Mounting PositionAll Angle
Motor Shaft DesignKeyed
Motor Shaft RotationCW/CCW
Motor TypeCapacitor Start , Capacitor Start/Run
Mounting TypeFace/Base
Nameplate Rpm1725 RPM , 1725/1425 RPM
No. Of Speeds1
Number Of Speeds1
Overall Length11 13/16"
Phase1
Rpm Range1701-1800 RPM
Service Factor1.35
Shaft Dia.5/8"
Shaft Length1 7/8"
Thermal ProtectionManual
Usable @ 200vYes
Usable @ 208vYes
Voltage120/240V AC
Warranty1 yr.
Hz60 Hz
Ins. ClassClass B
Manufacturers Warranty Length1 yr.
Motor BearingsBall
Motor DesignCapacitor Start/Run
Motor Frame MaterialSteel
Motor Mounting TypeFace/Base
Motor Service Factor1.35
Motor Thermal ProtectionManual
Nominal Efficiency70.2%
StandardsCSA CERTIFIED, UL LISTED
Weight26 lbs.

Shipping Info:

Ship weight (kg) 11.7
Ship height (cm)24.13
Ship length (cm)38.46
Ship width (cm)25.88
HS code8501404040
Country of OriginMX

Product Variants

ProductModelFrame MaterialFull Load AmpsHPHzMotor Mounting PositionMotor Thermal ProtectionNameplate RPMNominal EfficiencyPrice
MARATHON MOTORS 5KCR46MN0055Y General Purpose Motor Carbon Steel Tefc 1/2 Hp 1725/1425 Rpm 56c | AA9ZKP 1K127 / E264 5KCR46MN0055YSteel5.8-5.6/2.9-2.81/250/60All AngleManual1725/142574.0%€796.99
MARATHON MOTORS 5KCR46MN0055X General Purpose Motor Carbon Steel Tefc 1/2 Hp 1725/1425 Rpm 56c | AA9ZKR 1K129 / E266 5KCR46MN0055XRolled Steel5.8-5.6/2.9-2.81/250/60All AngleAuto1725/142574.0%€883.62
MARATHON MOTORS 5KCR49PN0099X General Purpose Motor Carbon Steel Tefc 3/4 Hp 1725/1425 Rpm 56c | AA9ZKV 1K132 / E275 5KCR49PN0099XRolled Steel9.0-8.8/4.5-4.43/450/60All AngleAuto1725/142575.2%€874.17
MARATHON MOTORS 5KCR49UN0106X General Purpose Motor Carbon Steel Tefc 1 Hp 1725/1425 Rpm 56c | AA9ZKY 1K135 / EG284 5KCR49UN0106XRolled Steel11.8-11.4/5.9-5.7150/60All AngleAuto1725/142577.4%€1,004.43
MARATHON MOTORS 5KC42GN0066 General Purpose Motor 1/2 Hp 1725 Rpm 115/230v 56c | AF7NAB 21YZ39 / C375 5KC42GN0066Rolled Steel8.6/4.31/260HorizontalNone172564%€498.48
