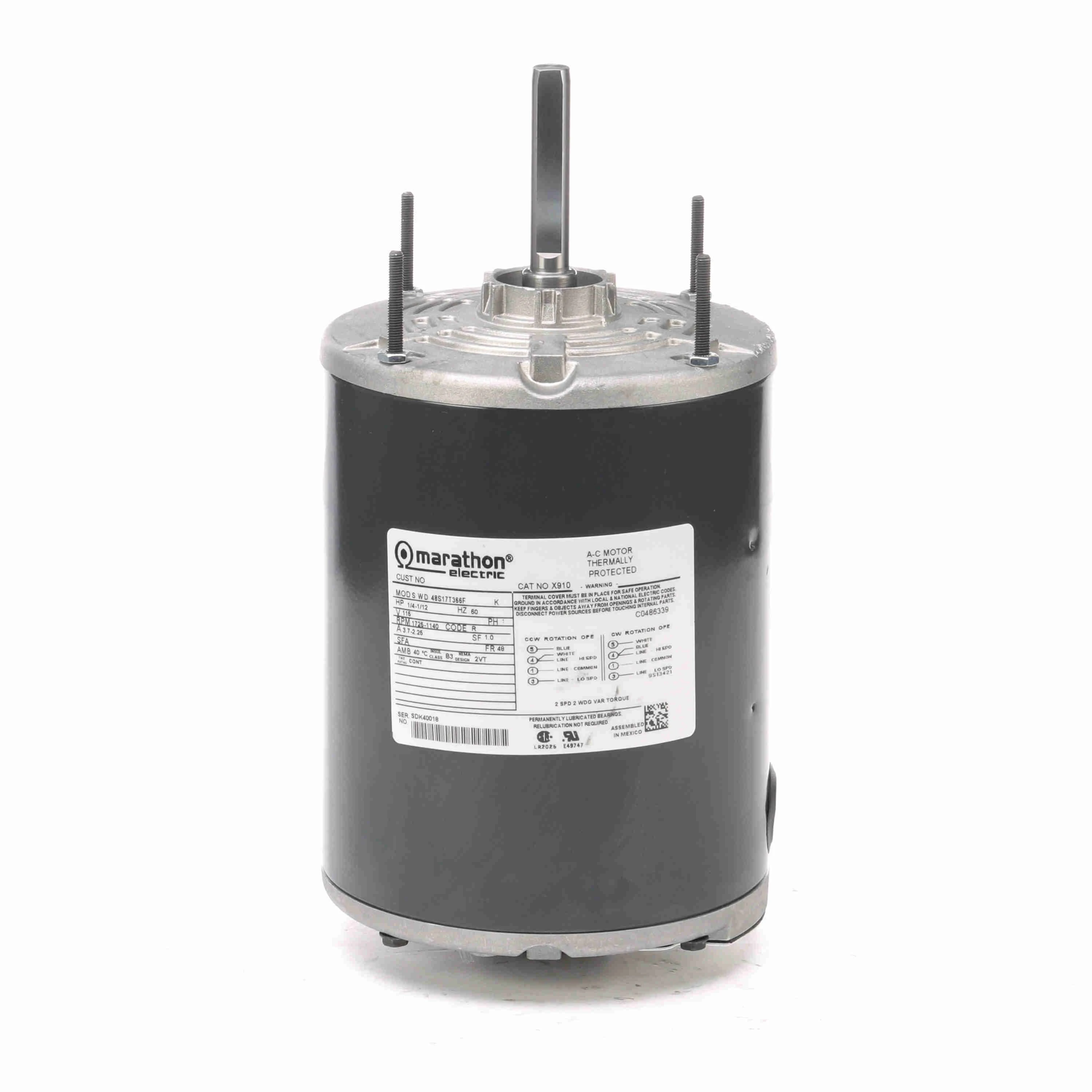

LEESON 048S17T366 X910 / 48S17T366F General Purpose Farm Duty Motor, 0.25/0.08 HP, 1 Phase, 60/60 Hz, 115 and 115V, 1800 RPM
Get it by Wednesday, Jun 18
€287.61 /unit
Add To Cart
Request a Quote
Payment
Get it by Wednesday, Jun 18
Payment
| Item | Poultry Fan Motor |
| Application | Farm Duty |
| Bearing Type | Ball |
| Color | Gray |
| Conduit Box Position | F1 Only |
| Duty Cycle | Continuous |
| Efficiency | 62% |
| Efficiency Group | Standard |
| Finish | Paint |
| Frame | 48 |
| Frame Material | Steel |
| Frequency | 60 Hz |
| Full Load Amps | 4.1/2.5A |
| Hp | 1/4 hp, 1/12 hp |
| Length Less Shaft | 8 1/2" |
| Max. Ambient Temp. | 40°C |
| Motor Application | Poultry Fans |
| Motor Enclosure Design | Totally Enclosed Air Over |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Face |
| Motor Shaft Design | Flat |
| Motor Shaft Rotation | CW/CCW |
| Motor Sub Application | Direct Drive Fan/Blower |
| Motor Thermal Protection | Automatic |
| Motor Type | Split Phase |
| Mounting Type | Stud |
| Nameplate Rpm | 1725/1140 RPM |
| Nominal Efficiency | 62% |
| Number Of Speeds | 2 |
| Overall Length | 11 1/16" |
| Phase | 1 |
| Rpm Range | 1701-1800 RPM |
| Service Factor | 1 |
| Shaft Dia. | 1/2" |
| Shaft Length | 2 1/2" |
| Stud Size | #10-32 |
| Thermal Protection | Automatic |
| Usable @ 200v | No |
| Usable @ 208v | No |
| Voltage | 115V AC |
| Hz | 60 Hz |
| Ins. Class | Class B |
| Motor Bearings | Ball |
| Motor Design | Split-Phase |
| Motor Frame Material | Steel |
| Motor Service Factor | 1 |
| No. Of Speeds | 2 |
| Standards | CSA CERTIFIED, UL RECOGNIZED |
| Weight | 17 lbs. |
| Ship weight (kg) | 7.65 |
| Ship height (cm) | 17.63 |
| Ship length (cm) | 33.66 |
| Ship width (cm) | 17.78 |
| HS code | 8501404040 |
| Country of Origin | MX |
| Product | Model | Frame | Full Load Amps | HP | Length Less Shaft | Nominal Efficiency | Overall Length | Price | |
|---|---|---|---|---|---|---|---|---|---|
 |
048S17T365 | 48Y | 5.3 / 2.9 | 1/3, 1/8 | 8.75" | 64% | 11 15/16" | €358.58 |
